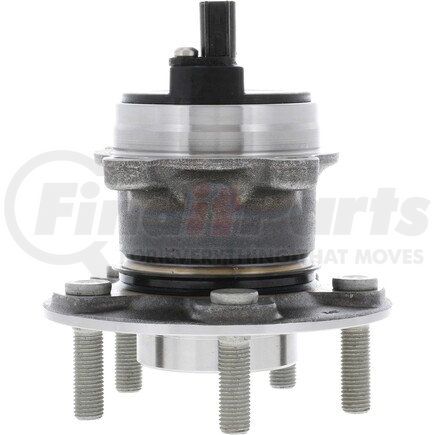

(888) 312-8812 Login SignupOE form, fit & function wheel hub unit.
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 63.2 MM |
| Brake Pilot Diameter | 63.6 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Anti Lock Braking System | Yes |
| Drive Type | Non-driven |
| Flange Offset | 63.5 MM |
| Flange Diameter | 5.350 IN |
| Bolt Circle Diameter | 108.1 MM |
| Anti Lock Braking System Type | Encoder with sensor |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.343 |
| Knuckle Bolt Circle Diameter (Millimeters) | 110.3 |
| Wheel Stud Size | M12X1.5 MM |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810610666 |
| Brand | Part Number |
|---|---|
| Power Train | PT512466 |
| Ford | BV6Z1104B, CV6Z1109A |
| Mevotech | MB40309 |
| Raybestos Brakes | 712466 |
| DuraGo | 29512466 |
| Motorcraft | HUB246 |
| CRS Automotive | NT512466 |
| SKF | BR930940 |
| Timken | HA590451 |
| MOOG Chassis Products | 512466 |
| Centric Parts | 407.61007, 407.61007E |
| Schaeffler | WH1357 |
| Autopart International | 1411556399 |
| Fenco | WH590451 |
| MPA | WH590451 |
| GMB | 7253090 |
