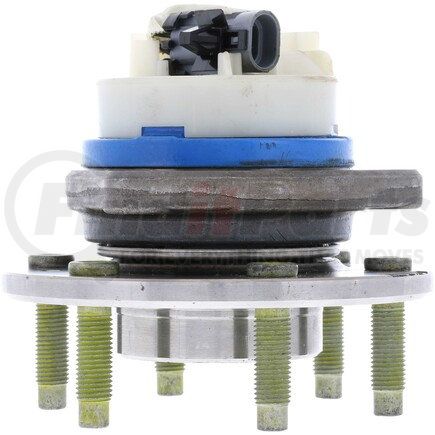

NTN WE61042 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$23249
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.780 IN |
| Brake Pilot Diameter | 1.657 IN |
| Wheel Stud Quantity | 6 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Drive Type | Non-driven |
| Flange Offset | 1.657 IN |
| 9555 | 4.528 IN |
| Knuckle Bolt Circle Diameter (Inches) | 4.567 |
| Knuckle Bolt Circle Diameter (Millimeters) | 116.0 |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810610420 |
Part Interchanges
- Power Train PT513197
- Mevotech H513197
- General Motors 7467709
- General Motors 12413103
- General Motors 12413198
- General Motors 12413104
- General Motors 7467455
- GMB 7300374
- Raybestos Brakes 713197
- Drive Tech America NT513197
- DuraGo 29513197
- GSP 104197
- SKF BR930313
- Timken HA590077
- MOOG Chassis Products 513197
- Centric Parts 407.62017
- Centric Parts 407.62017E
- ACDelco FW149
- ACDelco 513197
- Schaeffler 102210
- Schaeffler 102267
- Schaeffler FW9197
- DT Components 513197
- Autopart International 141144702
- MPA WH513197
- WJB WA512308
Fits Vehicles
- Cadillac STS (2005-2011)
- Cadillac SRX (2004-2009)
- Cadillac CTS (2004-2007)
