NTN part description

Product Description

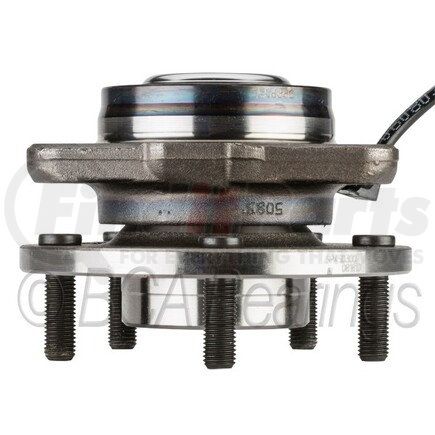

OE form, fit & function wheel hub unit.

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).

Product Attributes

Flange Included Yes
Flange Bolt Hole Quantity 3
Wheel Pilot Diameter 2.762 IN
Brake Pilot Diameter 2.781 IN
Wheel Stud Quantity 5
Flange Shape Modified Triangle
Drive Type Non-driven
Bearing Type Taper
Flange Offset 1.859 IN
Flange Diameter 146.4 MM
9555 4.750 IN
Bearing Generation Gen 3
Knuckle Bolt Circle Diameter (Inches) 4.750
Knuckle Bolt Circle Diameter (Millimeters) 120.7
Knuckle Pilot Hole Diameter 89.1 MM
Wheel Stud Size M12x1.5 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708998180
Warranty Time 12
Warranty Time UOM MO
UPC 662810608786

Part Interchanges

Fits Vehicles

  • GMC Jimmy (1998-2001)
  • Chevrolet Blazer (1998-2005)
