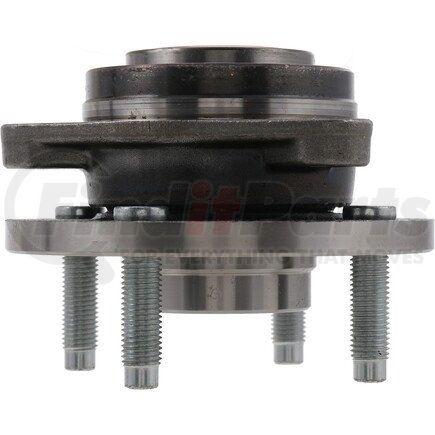

NTN WE60796 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$17199
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
| Spline Quantity | 33 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 2.223 IN |
| Brake Pilot Diameter | 2.359 IN |
| Wheel Stud Quantity | 4 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | No |
| Drive Type | Driven |
| Flange Offset | 1.535 IN |
| 9555 | 3.937 IN |
| Knuckle Bolt Circle Diameter (Inches) | 4.331 |
| Knuckle Bolt Circle Diameter (Millimeters) | 110.0 |
| Knuckle Bolt Hole Size | M12X1.75 |
| Wheel Stud Size | M12X1.5 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810607963 |
Part Interchanges
- Power Train PT513205
- Mevotech TXF513205
- Mevotech H513205
- General Motors 12413078
- General Motors 22667147
- General Motors 7467576
- General Motors 12413077
- General Motors 12413165
- General Motors 22701520
- GMB 7990156
- Raybestos Brakes 713205
- Drive Tech America NT513205
- DuraGo 29513205
- GSP 104205
- Alltech Automotive 513205
- CRS Automotive NT513205
- Precision Bearing 513205
- Magneti Marelli 1AMH513205
- SKF BR930315
- Timken HA590069
- MOOG Chassis Products 513205
- Centric Parts 400.62003
- Centric Parts 400.62003E
- ACDelco FW344
- ACDelco 513205
- Parts Master PM513205
- Schaeffler 102212
- DT Components 513205
- Autopart International 141149099
- Fenco WH513205
- MPA WH513205
- Parts Plus P513205
- WJB WA513205
Fits Vehicles
- Pontiac G5 (2007-2010)
- Pontiac Pursuit (2005-2006)
- Chevrolet Cobalt (2005-2010)
- Saturn Ion (2003-2007)
