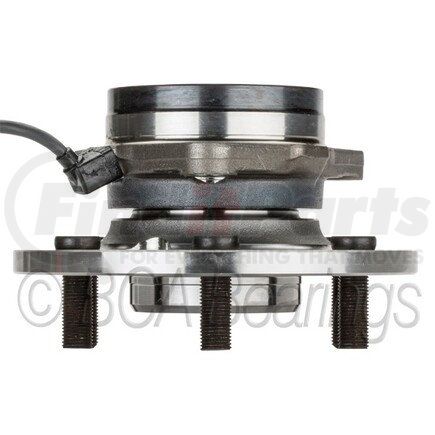

NTN WE60763 - Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
$21999
Limited Availability
Pay over 3-12 months with . Learn more
NTN part description
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
Product Attributes
Spline Quantity | 33 |
Flange Bolt Hole Quantity | 3 |
Wheel Pilot Diameter | 3.055 IN |
Brake Pilot Diameter | 3.075 IN |
Wheel Stud Quantity | 6 |
Flange Shape | Modified Triangle |
Anti Lock Braking System | Yes |
Anti Lock Braking System Type | Tone Ring |
Drive Type | Driven |
Flange Offset | 2.234 IN |
9555 | 5.500 IN |
Knuckle Bolt Circle Diameter (Inches) | 5.000 |
Knuckle Bolt Circle Diameter (Millimeters) | 127.0 |
Wheel Stud Size | M14x1.5 MM |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708998180 |
Warranty Time | 12 |
Warranty Time UOM | MO |
UPC | 662810607635 |
Part Interchanges
- Power Train PT515024
- Mevotech H515024
- General Motors 15997071
- General Motors 15997072
- GMB 7300018
- Raybestos Brakes 715024
- Drive Tech America NT515024
- DuraGo 29515024
- GSP 106024
- SKF BR930346
- Timken SP550307
- Timken 515024
- Timken SP550300
- Timken SP550301
- Precision Bearing 515024
- MOOG Chassis Products 515024
- Magneti Marelli 1AMH515024
- Centric Parts 402.66004E
- Centric Parts 402.66004
- ACDelco FW125
- ACDelco 515024
- Parts Master PM515024
- Parts Master PM515041
- Schaeffler 101987
- Schaeffler FW724
- DT Components 515024
- Autopart International 141144718
- Fenco WH515024
- Fenco WH515041
- Parts Plus P515024
Fits Vehicles
- GMC Yukon (1995-2000)
- GMC K2500 Suburban (1999)
- GMC K2500 (1995)
- GMC K1500 Suburban (1995-1999)
- GMC K1500 (1995-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet K2500 (1995-1996)
- Chevrolet K1500 Suburban (1995-1999)
- Chevrolet K1500 (1995-1999)
- Cadillac Escalade (1999-2000)
