(888) 312-8812 Login SignupPREMIUM GUARD PG5313 pg5313
Tap to view 6 more
$649
Limited availability at this price!
In Stock
Get it by Monday, Feb 2

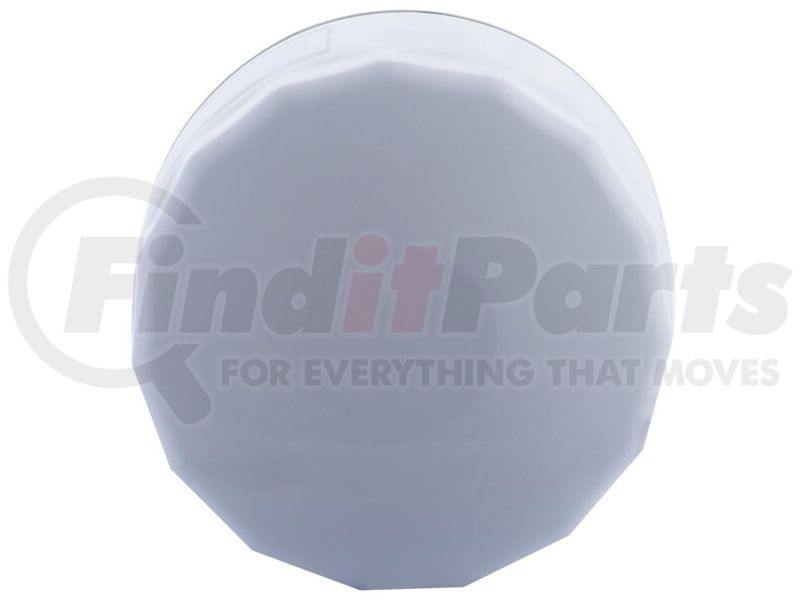

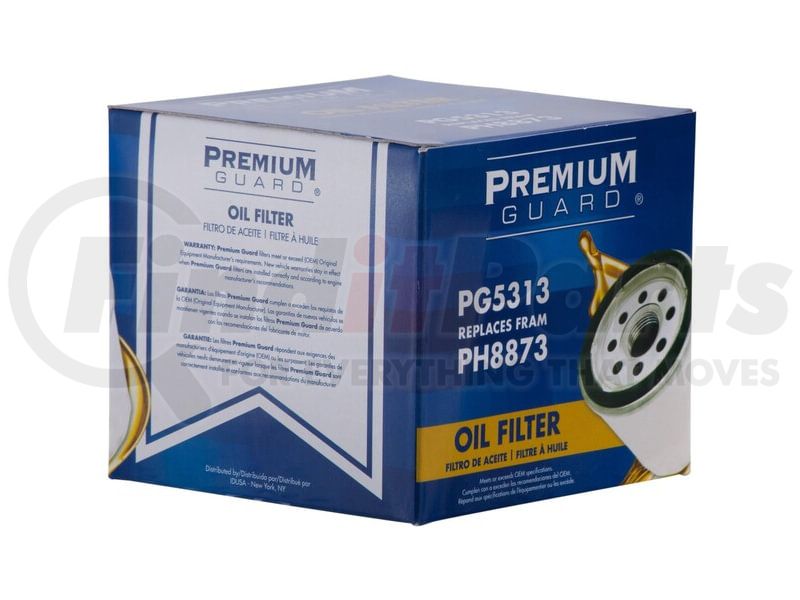

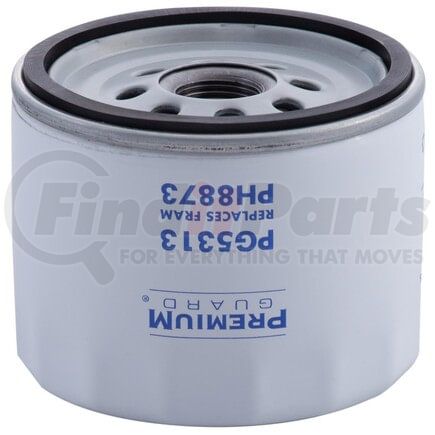

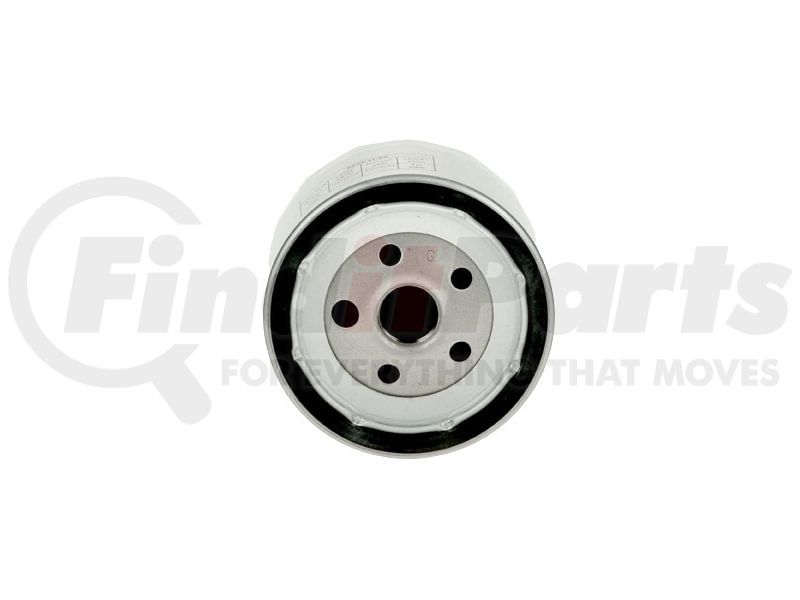

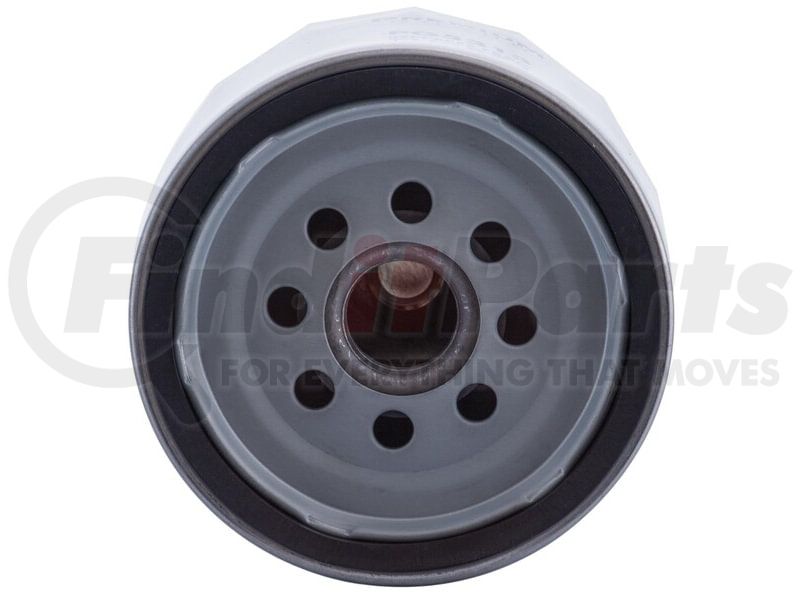

PREMIUM GUARD PG5313 Part Description
PREMIUM GUARD PG5313 Specifications
Product Attributes
| Filter Type | Spin-on |
| Filter Media Material | Enhanced Cellulose |
| Micron Rating | 15~25 |
| Flow Rate | 20L/min |
| Anti-Drain Back Valve | yes |
| Bypass Relief Valve | yes |
| Height | 3.17 IN |
| Gasket Inside Diameter | 3.07 IN |
| Gasket Outside Diameter | 3.43 IN |
| Gasket Thickness | 0.18 IN |
| Gasket Type | NBR |
| Height | 3.17 IN |
| Gasket Inside Diameter | 3.07 IN |
| Gasket Outside Diameter | 3.43±0.02 IN |
| Gasket Thickness | 0.18 IN |
| Outer Diameter Bottom | 3.66 IN |
| Inside Thread Size | 13/16"-16UNF-2B |
| Gasket Outside Diameter | 78±0.5 MM |
| Burst Pressure | 290 PS |
| Bypass Relief Valve Setting | 14-17 PS |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |

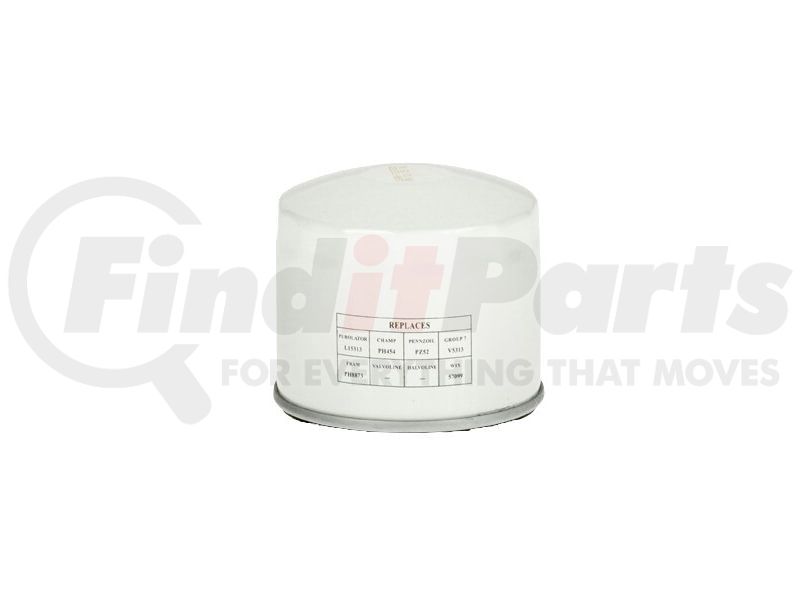

PREMIUM GUARD PG5313 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF11 |
| Amsoil | EAO59 |
| Atlas | G-71 |
| Autoedge | AL8873 |
| Autopart International | 5001-16911 |
| BP Auto | 1BP00930AA |
| Baldwin | B1438 |
| Blue Mountain | BMJ49 |
| Bosch | 3322 |
| CARQUEST | 85046 |
| Canadian Tire | 17-1735-8 |
| Carquest Premium Filters | 84099 |
| Carquest Standard | R84099MP |
| Cartek | CTK8873 |
| Casite Filters | CF25 |
| Champ | PH454 |
| Champ filters | PH12 |
| Champion Filters | 47099T |
| Chris Craft | 1681-08746 |
| Crusader Marine | 201104 |
| Donaldson | P550507 |
| Driveworks | DW-5313 |
| Duralast | D8873 |
| ECOGARD | X49 |
| ECOGUARD | X5313 |
| EXXON/MOBIL OIL | M1111, M1111A |
| FRAM | DL30, M1-111A, M1-111, PH30, XG30, TG30 |
| FRAM Drive | FD8873 |
| FVP | R1069 |
| Federated | PG5313F |
| Firestone | 7004918 |
| Fleetguard | LF16109 |
| GK Industries | OF15313 |
| GMB | 699-0026 |
| Generac | G055505 |
| General Motors | 25324052 |
| Group 7 | V49 |
| Hastings | LF509 |
| Havoline | T-18 |
| Heritage | HL8873 |
| Indmar | 501001 |
| K&N | HP-1011 |
| LUBER-FINER | PH454 |
| Luber-finer | PH12 |
| MOBIL OIL | M1111, M1111A |
| Magneti Marelli | 1AML00013A |
| Mann-Filter | ML 1026 |
| Mercury Marine | 14957 |
| MicroGard | MGL51069 |
| MicroGard Select | MSL51069 |
| Mighty Distributing System | M454 |
| Mileguard | MO8873 |
| Mobil 1 | M1-111 |
| Motorcraft | CFL-503 |
| NAPA | 1069 |
| NAPA Gold Filters | 1046 |
| NAPA ProSelect Filters | 21069 |
| NAPA Silver Filters | 7099 |
| Napa Proformer | 21069 |
| OMNIPARTS | 22045029 |
| Outboard Marine (OMC) | 173232 |
| PUREPRO | L5313 |
| PUROLATOR | TL15313, TL15313BP, PBL15313, PL15313 |
| Parts Master | 61069 |
| Parts Plus | PH454 |
| Pennzoil | PZ-3 |
| Pentius | PLB30 |
| Performax | PO-3 |
| Pleasurecraft | R077002 |
| Powerflow | SL15313 |
| Prime Guard | POF5313 |
| Pro-Gauge | PGO-49 |
| Pro-Tec | 102 |
| Promotive | PH5313 |
| Pronto | PO5313 |
| PureZone | 8-51069 |
| Purolator | L15313 |
| Quaker State | QS30 |
| Quicksilver | 35-866340Q03 |
| STP | SL8873 |
| STP Filters | S8873 |
| SURE FILTER | SFO5313 |
| Security Filters | SO-8873 |
| Service Champ | OF49 |
| Service Pro | M5313 |
| Shell - Archived | SH45 |
| Sierra Marine | 18-7824-2 |
| TruStar | TO8873 |
| Valucraft | V8873 |
| Valvoline | VO-65 |
| Volvo Penta | 835440 |
| WIX FILTERS | 57099, 57099XP |
| Warner Filters | WPH454 |
| Wix | 57099 |
| Yamaha | YSC10231200C |
| Z-Max | M49 |
PREMIUM GUARD PG5313 Fits Vehicles
- Four Winds International Windsport (2008-2010)
- Four Winds International Hurricane (2008-2010)
- Four Winds International Fun Mover (2008)
- Safari Trek (2000-2008)
- Safari Simba SE (2006)
- Safari Simba (2004-2009)
- Safari Passage (2006-2009)
- Safari Compression (2008-2009)
- Chinook Motor Coach Destiny (2002-2004)
- Jayco Seneca HG (2006)
- R-Vision Trail-Lite LE (2002)
- R-Vision Trail-Lite (2004-2007)
- R-Vision Trail-Aire (2004-2007)
- R-Vision T&C Touring Sedan (2006, 2008)
- R-Vision T&C Sport (2006)
- R-Vision Stratus (2003)
- R-Vision Condor (2000-2001)
- Roadtrek Versatile (2000-2002)
- Roadtrek Popular (2000-2002)
- Newmar Mountain Aire (2002-2007)
- National RV Tropi-Cal (2000)
- National RV Surf Side (2000-2001)
- National RV Sea Breeze LX (2003-2007)
- National RV Sea Breeze (2000-2001)
- National RV Dolphin LX (2002-2007)
- National RV Dolphin (2000-2007)
- Thor Motor Coach Challenger (2009-2010)
- Newmar Kountry Star (2002-2006)
- Newmar Dutch Star (2001-2002)
- Newmar Canyon Star (2007-2009)
- Jayco Firenza (2002-2003)
- Jayco Escapade (2003)
- Itasca Sunstar (2009-2010)
- Itasca Sunrise SE (2001)
- Itasca Sunrise (2001-2008)
- Itasca Sunova (2002-2010)
- Itasca Sunflyer (2002-2004)
- Itasca Spirit (2001)
- Itasca Latitude (2008-2009)
- Holiday Rambler Vacationer XL (2008)
- Holiday Rambler Vacationer (2002-2007)
- Holiday Rambler Traveler (2003-2004)
- Holiday Rambler Arista (2008-2010)
- Holiday Rambler Aluma-Lite (2010)
- Holiday Rambler Admiral SVE (2007)
- Holiday Rambler Admiral SE (2002-2006)
- Holiday Rambler Admiral (2007-2010)
- Gulf Stream Yellowstone (2006, 2009)
- Forest River Lexington GTS (2003)
- Forest River Lexington (2003)
- Fleetwood Terra LX (2007-2010)
- Fleetwood Terra (2002-2009)
- Fleetwood Storm (2002-2007)
- Fleetwood Southwind (2002-2010)
- Fleetwood Pace Arrow (2000, 2002-2010)
- Fleetwood Flair (2002-2007)
- Fleetwood Fiesta LX (2007-2010)
- Fleetwood Fiesta (2002-2009)
- Fleetwood Bounder Classic (2010)
- Fleetwood Bounder (2002-2010)
- Damon Outlaw (2007-2010)
- Damon Intruder (2002-2007)
- Damon Daybreak Sport (2009)
- Damon Daybreak (2000-2010)
- Damon Challenger (2000-2010)
- Coachmen Aurora (2008)
- Airstream Land Yacht (2001-2005)
- Monaco Coach Riptide (2009-2010)
- Monaco Coach Monarch SE (2003-2005)
- Monaco Coach Monarch (2001-2002, 2006-2011)
- Monaco Coach La Palma XL (2008)
- Monaco Coach La Palma (2002-2006)
- Chevrolet C70 (1960)
- GMC P6000 (1985)
- GMC C8500 Topkick (2003-2009)
- Blue Bird Vision School Bus (2009-2014, 2018)
- Blue Bird All American FE (2009)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- Workhorse Custom Chassis W72 (2006)
- Workhorse Custom Chassis W62 (2007-2010)
- Workhorse Custom Chassis W52 (2002-2005)
- Workhorse Custom Chassis W24 (2004-2005, 2007-2009, 2011)
- Workhorse Custom Chassis W18 (2006-2010)
- Workhorse Custom Chassis R26 (2007-2008)
- Workhorse Custom Chassis P32 (2001-2006)
- Chevrolet C8500 (2003-2009)
- Workhorse Custom Chassis W22 (2001-2009, 2011)
- Chevrolet C15 (1982-1988)
- GMC PB3500 Van (1966)
- Chevrolet Commercial Chassis (1991-1993)
- GMC C3500HD (1999-2002)
- Chevrolet C3500HD (1999-2002)
- Workhorse W25 (2005-2009)
- Workhorse W24 (2004-2009)
- Workhorse W22 (2001-2009)
- Workhorse W21 (2007-2009)
- Workhorse W20 (2001-2009)
- Workhorse W18 (2006-2009)
- Workhorse W16 (2006-2009)
- Workhorse R26 (2007-2009)
- Workhorse P32 (2001-2005)
- Chevrolet P40 (1980-1990)
- GMC P4500 (1979-1990)
- Checker A11E (1970-1974)
- Checker A11 (1970-1974)
- Chevrolet Estate (1969-1970)
- Checker Taxicab (1969-1974)
- Checker Aerobus (1968-1974)
- Buick Special (1968-1969)
- Pontiac Strato-Chief (1967-1970)
- GMC P1000 (1966)
- Studebaker Cruiser (1965-1966)
- Studebaker Commander (1965-1966)
- GMC I2500 (1965)
- GMC I1500 (1965)
- Pontiac Tempest (1964-1965, 1970)
- Pontiac Beaumont (1964-1969)
- GMC I1000 (1964-1965)
- GMC 3500 (1963-1965)
- GMC 3000 (1963-1965)
- GMC B7 (2001-2002)
- Chevrolet B7 (2001-2002)
- Chevrolet C35 (1983-1987, 1992-1999)
- Chevrolet C30 Panel (1963-1965)
- Chevrolet C10 Panel (1963-1965)
- Checker Deluxe (1969-1970)
- Pontiac Acadian (1962-1971)
- GMC PB1500 Series (1963-1965)
- GMC C7500 Topkick (2001-2009)
- GMC C6500 Topkick (2001-2009)
- GMC C5500 Topkick (2003-2009)
- Chevrolet C7500 Kodiak (2001-2009)
- Chevrolet C6500 Kodiak (2001-2009)
- Chevrolet C5500 Kodiak (2003-2009)
- GMC C6000 (1979-1986)
- Chevrolet C60 (1963-1986)
- Chevrolet C50 (1963-1986)
- GMC C4500 Topkick (2003-2009)
- Chevrolet C4500 Kodiak (2003-2009)
- Studebaker Wagonaire (1966)
- Studebaker Daytona (1965-1966)
- Oldsmobile F85 (1966-1970)
- GMC Suburban (1963-1966)
- GMC PB2500 Series (1963-1965)
- GMC PB1000 Series (1963-1966)
- GMC P35/P3500 Van (1967-1974)
- GMC P25/P2500 Van (1967-1974)
- GMC P15/P1500 Van (1967-1974)
- GMC K35/K3500 Pickup (1969-1974)
- GMC K25/K2500 Suburban (1968-1974)
- GMC K25/K2500 Pickup (1968-1974)
- GMC K15/K1500 Suburban (1969-1974)
- GMC K15/K1500 Pickup (1967-1974)
- GMC G35/G3500 Van (1970-1974)
- GMC G25/G2500 Van (1967-1974)
- GMC G15/G1500 Van (1967-1974)
- GMC G1000 Series (1963-1966)
- GMC C35/C3500 Pickup (1969-1974)
- GMC C25/C2500 Suburban (1969-1974)
- GMC C25/C2500 Pickup (1969-1974)
- GMC C15/C1500 Suburban (1969-1974)
- GMC C15/C1500 Pickup (1967-1974)
- GMC 2500 Series (1963-1965)
- GMC 1500 Series (1963-1965)
- GMC 1000 Series (1963-1965)
- Chevrolet Townsman (1969-1972)
- Chevrolet Suburban (1963-1966)
- Chevrolet P30 Van (1968-1974)
- Chevrolet P30 Series (1963-1967)
- Chevrolet P20 Van (1968-1974)
- Chevrolet P20 Series (1963-1967)
- Chevrolet P10 Van (1968-1974)
- Chevrolet P10 Series (1963-1967)
- Chevrolet Kingswood (1969-1972)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K20 Pickup (1963-1965, 1968-1974)
- Chevrolet K10 Pickup (1963-1974)
- Chevrolet G30 Van (1970-1974)
- Chevrolet G20 Van (1967-1974)
- Chevrolet G10 Van (1964-1974)
- Chevrolet Del Ray (1958)
- Chevrolet Chevy II (1962-1968)
- Chevrolet Chevelle (1964-1977)
- Chevrolet C30 Pickup (1963-1965, 1970-1974)
- Chevrolet C20 Pickup (1963-1965, 1968-1974)
- Chevrolet C10 Pickup (1963-1974)
- Chevrolet Brookwood (1969-1972)
- Chevrolet Blazer (1969-1974)
- Chevrolet Biscayne (1958-1972)
- Pontiac Laurentian (1967-1969, 1971-1974, 1977-1981)
- Pontiac Ventura (1971-1977)
- Pontiac Sunbird (1976-1979)
- Pontiac Phoenix (1977-1979)
- Pontiac Parisienne (1967-1974, 1976-1986)
- Pontiac LeMans (1964-1965, 1970-1981)
- Pontiac Grand Prix (1978-1987)
- Pontiac Grand LeMans (1975-1983)
- Pontiac Grand Am (1978-1980)
- Pontiac Firebird (1970-1997)
- Pontiac Catalina (1977-1981)
- Pontiac Bonneville (1983-1986)
- Pontiac Astre (1975-1977)
- Oldsmobile Starfire (1976-1979)
- Oldsmobile Omega (1973-1979)
- Oldsmobile Delta 88 (1977, 1981-1982)
- Oldsmobile Cutlass Supreme (1975-1976, 1978-1980, 1982-1983, 1987)
- Oldsmobile Cutlass Cruiser (1980, 1982-1983)
- Oldsmobile Cutlass Calais (1978-1980, 1982, 1984)
- Oldsmobile Cutlass Salon (1978-1980)
- Oldsmobile Cutlass (1967-1971, 1975-1976, 1978-1981, 1985-1986)
- Oldsmobile Custom Cruiser (1977, 1991-1992)
- GMC Yukon XL 2500 (2001-2006)
- GMC V3500 (1987-1988)
- GMC V2500 (1987)
- GMC Sprint (1971-1977)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2006)
- GMC Savana 3500 (1999-2002)
- GMC R3500 (1987-1988)
- GMC R2500 (1987-1988)
- GMC P3500 (1979-1989, 1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1987, 1989)
- GMC P25 (1975-1978)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC K3500 (1979-1986, 1999-2000)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1982, 1984, 1999)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986, 1999-2000)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1980)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1984)
- GMC K15 (1975-1978)
- GMC Jimmy (1970-1982)
- GMC G3500 (1979, 1982-1984)
- GMC G35 (1975-1978)
- GMC G2500 (1979-1984)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1984)
- GMC G15 (1975-1978)
- GMC Caballero (1978-1987)
- GMC C3500 (1979-1986, 1999-2000)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1982, 1984, 1999)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986, 1999-2000)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1980)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1984)
- GMC C15 (1975-1978)
- Chevrolet Vega (1971-1977)
- Chevrolet V30 (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet Suburban 2500 (2001-2006)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2006)
- Chevrolet R30 (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1989)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975-1980)
- Chevrolet Nova (1969-1979)
- Chevrolet Monza (1975-1979)
- Chevrolet Monte Carlo (1970-1988)
- Chevrolet Malibu (1964-1967, 1973-1983)
- Chevrolet Laguna (1973-1976)
- Chevrolet K3500 (1999-2000)
- Chevrolet K30 (1977-1986)
- Chevrolet K2500 Suburban (1999)
- Chevrolet K2500 (1999-2000)
- Chevrolet K20 Suburban (1968-1982)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1968-1980)
- Chevrolet K10 (1975-1984)
- Chevrolet Impala (1959-1985)
- Chevrolet G30 (1975-1979, 1981-1984)
- Chevrolet G20 (1975-1984)
- Chevrolet G10 (1975-1984)
- Chevrolet Express 3500 (1999-2002)
- Chevrolet El Camino (1964-1977, 1979-1987)
- Chevrolet Corvette (1957-1982, 1984-1991)
- Chevrolet Caprice (1966-1993)
- Chevrolet Camaro (1967-1997)
- Chevrolet C3500 (1999-2000)
- Chevrolet C30 (1975-1986)
- Chevrolet C2500 Suburban (1999)
- Chevrolet C2500 (1999-2000)
- Chevrolet C20 Suburban (1968-1982)
- Chevrolet C20 (1975-1986)
- Chevrolet C10 Suburban (1968-1980)
- Chevrolet C10 (1975-1984)
- Chevrolet K5 Blazer (1975-1982)
- Chevrolet Bel Air (1958-1961, 1963-1975, 1981)
- Chevrolet Avalanche 2500 (2002-2006)
- Cadillac Commercial Chassis (1992-1993)
- Cadillac Brougham (1990-1992)
- Cadillac Fleetwood (1993)
- Buick Skylark (1968-1971, 1977-1979)
- Buick Commercial Chassis (1991-1993)
- Buick Roadmaster (1991-1993)
- Buick Regal (1977-1987)
- Buick LeSabre (1978, 1982)
- Buick Century (1977-1981)
- Buick Apollo (1973-1975)
- Checker Marathon (1964, 1968-1982)
- Avanti II (1970-1972, 1977-1985, 1987-1991)
PREMIUM GUARD PG5313 Customer Reviews
No reviews yet
Be the first to review this product!
PREMIUM GUARD PG5313 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
