GABRIEL part description

Product Description

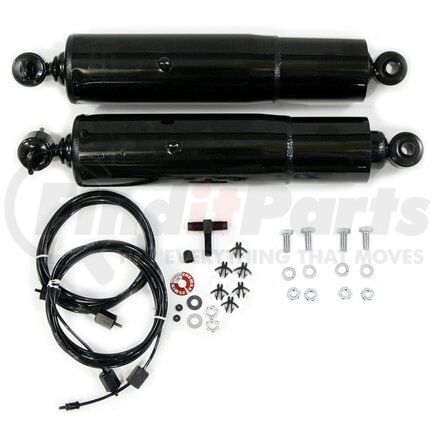

Air Adjustable Shock Absorbers

Features & Benefits

  • America's best-known air-adjustable shock absorbers
  • Fully-adjustable air shocks help you maintain proper ride height
  • Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
  • Custom-sized for a direct and simple installation and fit
  • Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
  • Air pressure of 25 min – 200 max psi
  • Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
  • Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
  • Ideal for temporarily towing boats and trailers or heavy loads

Product Attributes

Core Color Y
Boot Included No
Collapsed Length (in) 15.16
Installation Hardware Included Yes
Extended Length (in) 25.09
Package Contents 2 Shocks, 4 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 3 Washers, 1 Seal, 2 Tub, 2 Bolts
Weight (lbs) 12.00
Upper Mount Code BP14
Lower Mount Code ES83
Stroke (in) 9.93
Bore n/a
Rebound (lb) n/a
Dust Tube n/a
Mounting Codes 2024.pdf https://gabriel.com/sites/default/files/Mounting_Codes_2024.pdf
Compression (lb) n/a
Recoil Cutoff n/a
Accessory Kit # n/a
Dust Tube Material Steel

Additional Information

Harmonized Tariff Code (Schedule B) 8708801600
MSDS Sheet Number ARP002 / RC001
Country of Origin (Primary) MX
UPC 00043645686826
VMRS Code 016006001
UNSPSC 25172011

Part Interchanges

GABRIEL 49232 Cross Reference

We have 1 alternatives for the 49232 by GABRIEL:

Fits Vehicles

  • Ford Explorer Sport Trac (2001-2005)
  • Mercury Mountaineer (1997-2001)
  • Ford Explorer (1995-2001)
