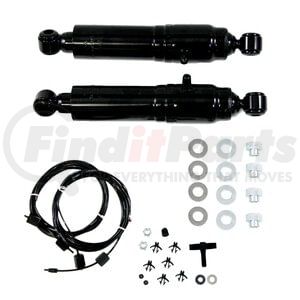

Name: Gabriel 49218 Air Adjustable Shock Absorbers
SKU: 49218
Availability: OutOfStock

Air Adjustable Shock Absorbers

America's best-known air-adjustable shock absorbers
Fully-adjustable air shocks help you maintain proper ride height
Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
Custom-sized for a direct and simple installation and fit
Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
Air pressure of 25 min – 200 max psi
Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
Ideal for temporarily towing boats and trailers or heavy loads

Core Color	Y
Boot Included	No
Extended Length (in)	26.34
Installation Hardware Included	Yes
Collapsed Length (in)	16.36
Package Contents	2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 1 Washers, 1 Seal, 2 Tub
Weight (lbs)	13.80
Upper Mount Code	BP14
Lower Mount Code	ES34
Stroke (in)	9.98
Mounting Codes 2024.pdf	https://gabriel.com/sites/default/files/Mounting_Codes_2024.pdf
Compression (lb)	n/a
Recoil Cutoff	n/a
Accessory Kit #	n/a
Dust Tube Material	Steel
Bore	n/a
Rebound (lb)	n/a
Dust Tube	n/a

MSDS Sheet Number	ARP002 / RC001
Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708801600
UPC	00043645568962
VMRS Code	016006001
UNSPSC	25172011
