FRAM TG12060 Part Description
Manufacturer
Product Description

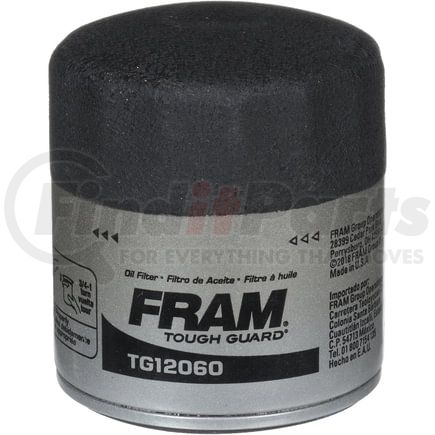

FRAM, TG12060, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- SureGrip® technology for easy install and removal
- Synthetic blend media provides 99% dirt holding capacity
- Silicone anti-drain back valve helps ensure safe engine start up
Spin-on Oil Filter
FRAM TG12060 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.330 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.196 IN |
| Housing Color | Silver |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.450 IN |
| Gasket Outside Diameter | 2.750 IN |
| Attachment Type | Spin-On |
| Bypass Relief Valve Setting | 19-25 PS |
| Gasket Type | Base |
| Grade | Premium |
| Grade Type | Premium |
| Inlet Type | Threaded |
| Inside Thread Diameter | M22x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.000 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100561527 |
| UNSPSC | 15121501 |
FRAM TG12060 Part Interchanges
| Brand | Part Number |
|---|---|
| Ultra | XG12060 |
| ACDelco | PF64, UPF64R |
| LUBER-FINER | PH488, PH10064 |
| Service Champ | WPH488, HP2222, OF2222 |
| Certified | CPH12060 |
| General Motors | 12667194, 12670058, 12674698, 650237, 12640445, 12696048, 12706595, 12683286 |
| Warner | WPH488 |
| Mobil 1 | M1-113A, M1-114A |
| MOBIL | PH488 |
| Champ | PH10064 |
| Carquest Premium Filters | 95140 |
| Carquest Standard Filters | R95140 |
| Pennzoil | PZ194 |
| FRAM | PH12060, TG12060 |
| Purolator | L11403 |
| Wix | WL10290, WL10290XP |
| MicroGard | MGL10290 |
| NAPA Gold Filters | 100290, 7060 |
| NAPA ProSelect Filters | 2100290, 27060 |
| MotoMaster | MPH12060 |
| Defense Filters | DL12060 |
| STP | S12060, S12060XL |
| Parts Master | WL610290, WL610290BP, WL610290X |
| NAPA Silver Filters | 3100290, 37060 |
| NAPA Platinum Filters | 4100290, 47060 |
| Purolator BOSS | PBL11403 |
| PurolatorONE | PL11403 |
| FRAM Ultra Synthetic | XG10855, XG12060 |
| FRAM Core | COR12060ACC |
| FRAM Force | FF12060 |
| FRAM Titanium | FS12060 |
| Mobil | MO2222, PH488 |
| FRAM Drive | FD12060 |
| Mighty Distributing System | M9509SP |
| STP Filters | S12060, S12060XL |
| ECOGARD | S11642 |
| NAPA | 100290 |
| Warner Filters | WPH488 |
| Purolator TECH | TL11403 |
| Tough Guard | TG12060 |
| FRAM Tough Guard | TG12060 |
| FRAM Pro | FP12060BP |
| FRAM Synthetic Endurance | FE12060 |
FRAM TG12060 Fits Vehicles
- Lincoln Nautilus (2024-2025)
- Buick Envista (2024-2025)
- Ford Mustang (2024-2025)
- Lincoln Corsair (2023-2024)
- Ford Escape (2023-2024)
- Suzuki Aerio (2002)
- Chevrolet Captiva Sport (2012)
- Buick Encore GX (2020-2025)
- Cadillac CT5 (2022-2025)
- Chevrolet Trailblazer (2021-2025)
- Chevrolet Trax (2021-2022, 2024-2025)
- Chevrolet Blazer (2019-2021)
- Buick Regal TourX (2018-2020)
- GMC Terrain (2018-2024)
- Chevrolet Traverse (2018-2019)
- Buick Regal Sportback (2018-2020)
- Chevrolet Spark (2016-2022)
- Buick LaCrosse (2018-2019)
- Chevrolet Equinox (2018-2025)
- Buick Envision (2016-2020)
- Chevrolet Volt (2016-2019)
- Chevrolet Cruze (2016-2019)
- Cadillac CT6 (2016-2018)
- GMC Acadia (2017-2021)
- Chevrolet Camaro (2016-2024)
- Buick Encore (2016-2019, 2022)
- Chevrolet Malibu Limited (2016)
- Chevrolet Colorado (2015-2022)
- Cadillac CTS (2014-2019)
- Chevrolet Corvette (2014-2025)
- Chevrolet Impala (2013-2019)
- GMC Canyon (2015-2022)
- Chevrolet Impala Limited (2014-2015)
- Chevrolet Malibu (2013-2025)
- Buick Regal (2014-2017)
- Cadillac ATS (2013-2019)
