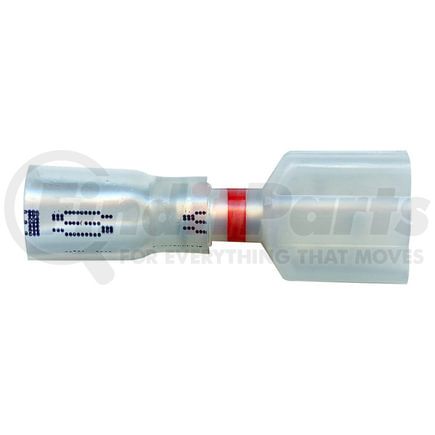

(888) 312-8812 Login SignupGROTE 844436 Opt; Seal Heat Shrink Male Discon., 22; 18 Ga, .250", Pk 15
$1199
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GROTE 844436 Part Description
Manufacturer
Product Description
Opt
Features & Benefits
- Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
- Funnel-entry copper ferrule inserted over brass terminal to provide strong mechanical termination
- Tubing doesn’t insulate the nylon crimp surface where the connector is crimped, ensuring superior crimp performance
GROTE 844436 Specifications
Product Attributes
| Color | Clear w/Red Stripe |
| Connection Type | Male Disconnect |
| Functions | Heat Shrinkable |
| Gauge | 22-18 GA |
| Material | Cross-linked ionic polymer |
| Operating temperature | -55°C to 125°C (-67°F to 257°F) |
| Prop 65 Label Required | N |
| Rohs | Yes |
| Shrink Ratio | Exceeds 2.5 to 1 |
| Voltage | 600V |
| Package Type | Clamshell |
| Stud or Tab Size | .250" |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8536904000 |
| UPC | 00621935024628 |
| VMRS Code | 053007002 |
