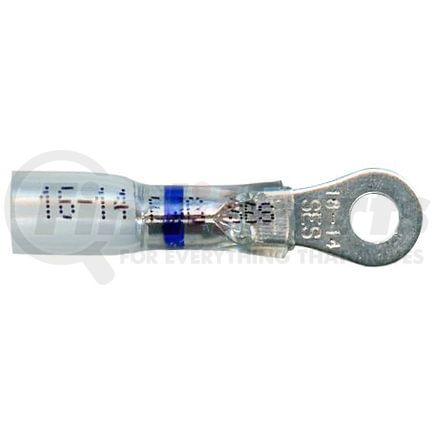

(888) 312-8812 Login SignupGROTE 844408 Opt; Seal Heat Shrink Ring, 16; 14 Ga, #8, Pk 15
$1299
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 14
GROTE 844408 Part Description
Manufacturer
Product Description
Opt
Features & Benefits
- 22-18 (red) & 16-14 (blue) ring terminals are 10% thicker than standard terminals (8mm vs. 7mm)
- 45˚ barrel provides visual inspection that the wire is stripped proper length & fully seated
- All ring terminals comprised of copper with tin plating
- Brazed seam barrel ensures superior crimp performance
- Color-coded stripes identify wire gauge size to be used with connector and indicate/guide where to position crimp nest to install properly
- Long Ring Terminal ensures a strong, waterproof seal
- provides flush surface for maximum contact
- & allows ring terminal to be stacked unimpeded by tubing
- Serrations in crimp barrel provide strong mechanical termination
GROTE 844408 Specifications
Product Attributes
| Color | Clear w/Blue Stripe |
| Connection Type | Ring Terminal |
| Functions | Heat Shrinkable |
| Gauge | 16-14 GA |
| Material | Cross-linked ionic polymer |
| Operating temperature | -55°C to 125°C (-67°F to 257°F) |
| Prop 65 Label Required | N |
| Rohs | Yes |
| Shrink Ratio | Exceeds 2.5 to 1 |
| Voltage | 600V |
| Package Type | Clamshell |
| Stud or Tab Size | #8 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8536904000 |
| UPC | 00621935023621 |
| VMRS Code | 053007002 |
