TRUCK-LITE part description

Product Description

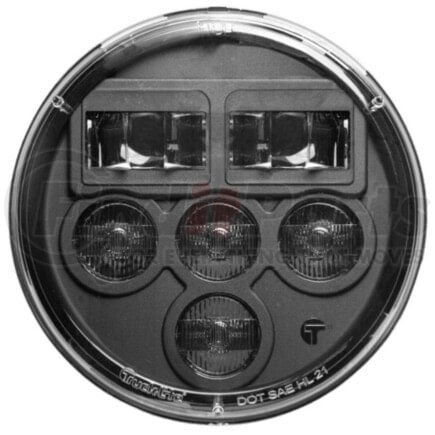

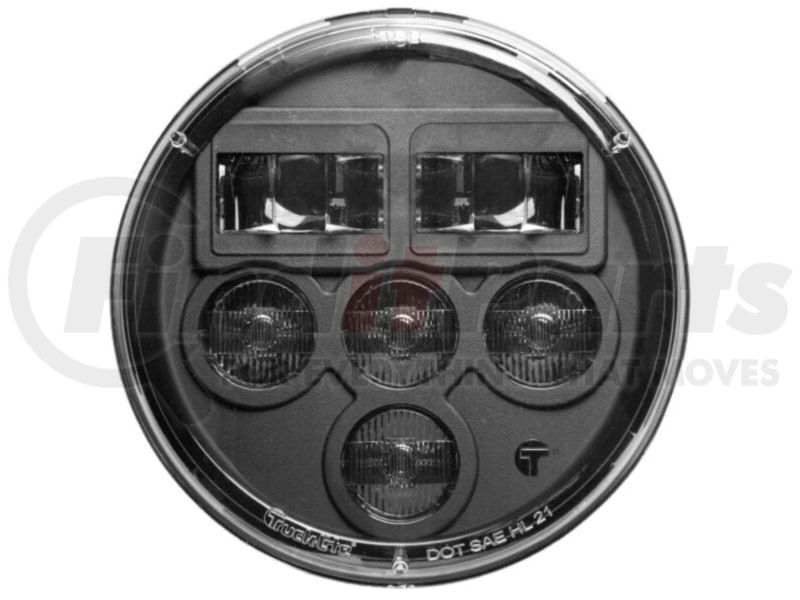

LED 7" ROUND NON-HEATED HEADLAMP

Product Attributes

Beam Type High Beam Low Beam
Lens Color Clear
Lens Material PC (Polycarbonate)
Housing Material Die-Cast Aluminum
Bulb Technology LED
Aiming Type Mechanical Aim
Common Size 7 IN
Current Major 2.00A-3.70A @ 12.8V 1.05A-1.90A @ 25.8V
Current Minor 1.38A-1.98A @ 12.8V 0.70A-1.00A @ 25.8V
Heated Lens No
Lamp Connection Hardwired
Lens Height 1.2" IN
Lens Shape Round
Lens Width 7" DIAMETER IN
Number Of Diodes/bulbs 6
Plug Side One Hardwired
Plug Side Two H4 - 3 blade connector
Sealed/bulb Replaceable Sealed
Wire Gauge Measurement 16
Wire Quantity 3
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
