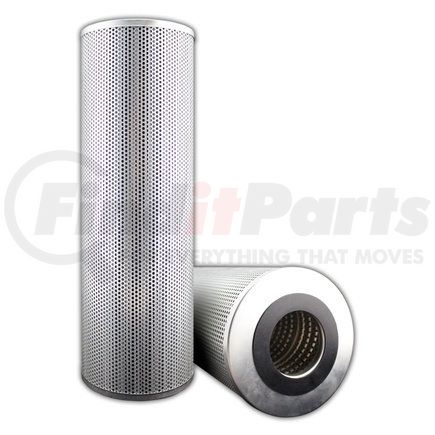

Main Filter MF0156747 - CIM-TEK 30202 Interchange Hydraulic Filter
- Part Number
- MF0156747
- Manufacturer
- MAIN FILTER
- Description
-
CIM-TEK 30202 Interchange Hydraulic Filter
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 6.083 |
| Inide Diameter Top | 2.618 |
| Outside Diameter Bottom | 6.083 |
| Inside Diameter Bottom | 2.618 |
| Collapse Pressure | 102 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 312.473304 |
| Filter Area sq in | 3192 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
| Beta Ratio 2 | 1000/12.4 |
| Micron 1 | 10 |
| handle | No |
| wrap | Yes |
Features & Benefits
- Interchange/replacement for OEM CIM-TEK p/n 30202
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0156747 replaces OEM 30202 by CIM-TEK and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
MAIN FILTER MF0156747 Cross Reference
We have 1 alternatives for the MF0156747 by MAIN FILTER:
