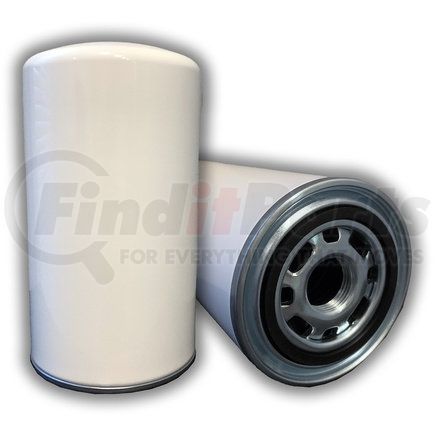

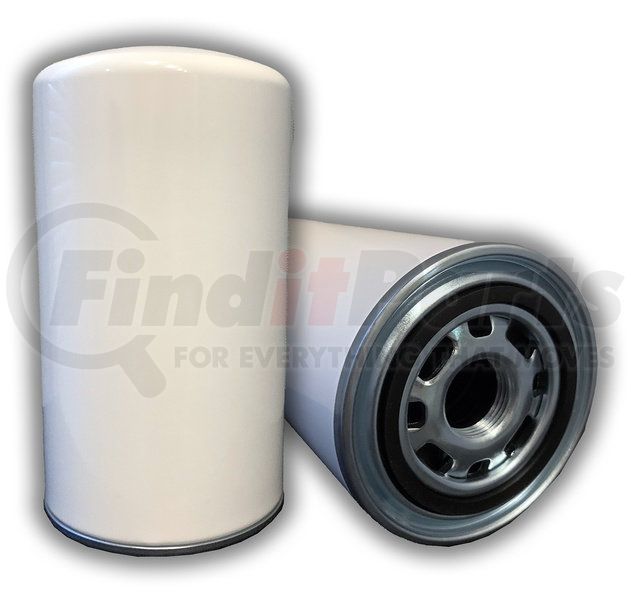

(888) 312-8812 Login SignupMAIN FILTER MF0029306 Aftermarket Replacement Spin-On Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
Tap to view 1 more
MSRP: $76.86
$6449
Save $12.37
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MAIN FILTER MF0029306 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FILTER MART p/n 288495
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0029306 replaces OEM 288495 by FILTER MART and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.78 |
| Outside Diameter Bottom | 3.78 |
| Thread Size | 44259 |
| Threads | 14 BSP |
| BPVS Setting PSI | 25.4 |
| ADBV | NO |
| Burst Pressure | 304.6 |
| Collapse Pressure | 145 |
| Flow Rate GPM | 26 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 28.83155 |
| Filter Area sq in | 295 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
| Beta Ratio 2 | 1000/12.4 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM FILTER MART p/n 288495
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0029306 replaces OEM 288495 by FILTER MART and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- Buy hydraulic filters direct from the manufacturer
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
MAIN FILTER MF0029306 Specifications
Product Attributes
| Handle | No |
| Height (in.) | 5.75 |
| Bypass | Yes |
| Wrap | No |
| Product Media | Glass |
| Micron Rating | 10 |
| Outside Diameter (Top) | 3.78 in. |
| BPVS Setting (PSI) | 25.4 |
| ADBV | Yes |
| Flow Rater | 26 GPM |
| Burst Pressure | 304.6 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Collapse Pressure | 145 |
| Dust Holding Capacity | 28.83 grams |
| Flow Direction | Outside-In |
| Filter Area (sq. in.) | 295 |
| Beta Ratio 2 | 1000/12.4 |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
MAIN FILTER MF0029306 Part Interchanges
| Brand | Part Number |
|---|---|
| Filter Mart | 288495 |
MAIN FILTER MF0029306 Cross References
We have 1 alternatives for the MF0029306 by MAIN FILTER:
