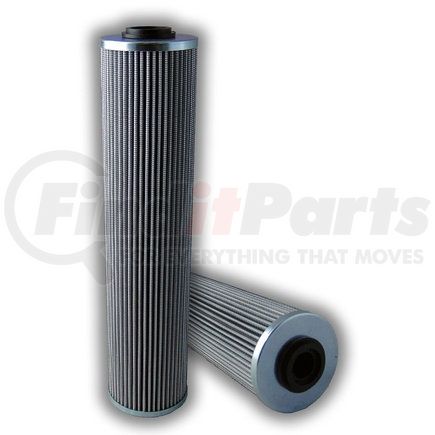

(888) 312-8812 Login SignupMAIN FILTER MF0430493 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Glass, Outside-In Flow
Tap to view 2 more
MSRP: $80.51
$7199
Save $8.52
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
MAIN FILTER MF0430493 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 01E32016VG16SV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430493 replaces OEM 01E32016VG16SV by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.756 |
| Inide Diameter Top | 1.614 |
| Outside Diameter Bottom | 2.756 |
| BPVS Setting PSI | 29 |
| Collapse Pressure | 232 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 42.883137 |
| Filter Area sq in | 438 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
| Beta Ratio 2 | 1000/12.4 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 01E32016VG16SV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430493 replaces OEM 01E32016VG16SV by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM INTERNORMEN p/n 01E32016VG16SV
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- Images may be a general representations of products
MAIN FILTER MF0430493 Specifications
Product Attributes
| Product Media | Glass |
| Micron Rating | 10 |
| Height (in.) | 11.96 |
| Handle | No |
| Bypass | Yes |
| Wrap | No |
| Inside Diameter (Top) | 1.61 in. |
| BPVS Setting (PSI) | 29 |
| Outside Diameter (Bottom) | 2.76 in. |
| Collapse Pressure | 232 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Top) | 2.76 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Filter Area (sq. in.) | 438 |
| Flow Direction | Outside-In |
| Dust Holding Capacity | 42.88 grams |
| Beta Ratio 1 | 200/9.9 |
| Gasket Material | Viton |
| Beta Ratio 2 | 1000/12.4 |
| Fluid Type | HH / HL / HM / HV |
MAIN FILTER MF0430493 Cross References
| Brand | Part Number |
|---|---|
| INTERNORMEN | 01E32016VG16SV |
