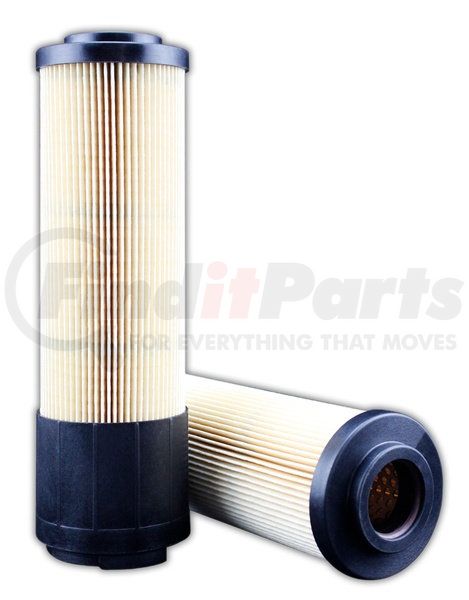

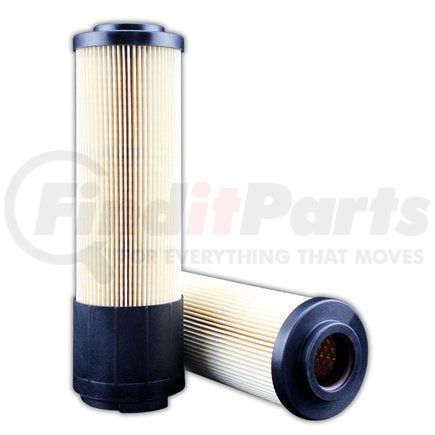

(888) 312-8812 Login SignupMAIN FILTER MF0427147 Aftermarket Replacement Hydraulic Filter with 25 Micron Rating, Cellulose, Outside-In Flow
MSRP: $34.54
$3099
Save $3.55
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MAIN FILTER MF0427147 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM FILTER-X p/n XH03532
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0427147 replaces OEM XH03532 by FILTER-X and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.315 |
| Inide Diameter Top | 1.114 |
| Outside Diameter Bottom | 2.315 |
| BPVS Setting PSI | 22 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 14.663 |
| Filter Area sq in | 367 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/25 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM FILTER-X p/n XH03532
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0427147 replaces OEM XH03532 by FILTER-X and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Built using Quality Components with strict quality control.
- Main Filter MF0427147 replaces OEM XH03532 by FILTER-X and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- Images may be a general representations of products
- Built using Quality Components with strict quality control.
- Images may be a general representations of products
MAIN FILTER MF0427147 Specifications
Product Attributes
| Handle | Yes |
| Bypass | Yes |
| Wrap | No |
| Product Media | Cellulose |
| Micron Rating | 25 |
| Height (in.) | 7.83 |
| Outside Diameter (Top) | 2.32 in. |
| Inside Diameter (Top) | 1.11 in. |
| BPVS Setting (PSI) | 21.8 |
| Collapse Pressure | 145 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Bottom) | 2.32 in. |
| Dust Holding Capacity | 14.66 grams |
| Flow Direction | Outside-In |
| Beta Ratio 1 | 2/25 |
| Fluid Type | HH / HL / HM / HV |
| Filter Area (sq. in.) | 367 |
| Gasket Material | Viton |
MAIN FILTER MF0427147 Cross References
We have 1 alternatives for the MF0427147 by MAIN FILTER:
MAIN FILTER MF0427147 Customer Reviews
No reviews yet
Be the first to review this product!
