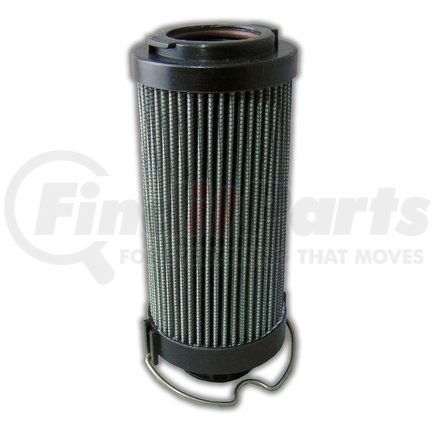

(888) 312-8812 Login SignupMAIN FILTER MF0428829 Aftermarket Replacement Hydraulic Filter with 25 Micron Rating, Wire Mesh, Outside-In Flow
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MAIN FILTER MF0428829 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM WOODGATE p/n WGHH16025RW
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0428829 replaces OEM WGHH16025RW by WOODGATE and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.362 |
| Outside Diameter Bottom | 2.362 |
| Inside Diameter Bottom | 1.347 |
| BPVS Setting PSI | 44 |
| Collapse Pressure | 435 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Filter Area sq in | 143 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM WOODGATE p/n WGHH16025RW
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Images may be general representations of products and may vary from image
- Main Filter MF0428829 replaces OEM WGHH16025RW by WOODGATE and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM WOODGATE p/n WGHH16025RW
- Images may be a general representations of products
MAIN FILTER MF0428829 Specifications
Product Attributes
| Micron Rating | 25 |
| Height (in.) | 5.67 |
| Wrap | No |
| Product Media | Wire Mesh |
| Fluid Type | HH / HL / HM / HV |
| BPVS Setting (PSI) | 43.5 |
| Collapse Pressure | 435 |
| Handle | Yes |
| Bypass | Yes |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 143 |
| Outside Diameter (Top) | 2.36 in. |
| Flow Direction | Outside-In |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Gasket Material | Viton |
MAIN FILTER MF0428829 Part Interchanges
| Brand | Part Number |
|---|---|
| Woodgate | WGHH16025RW |
MAIN FILTER MF0428829 Cross References
We have 1 alternatives for the MF0428829 by MAIN FILTER:
