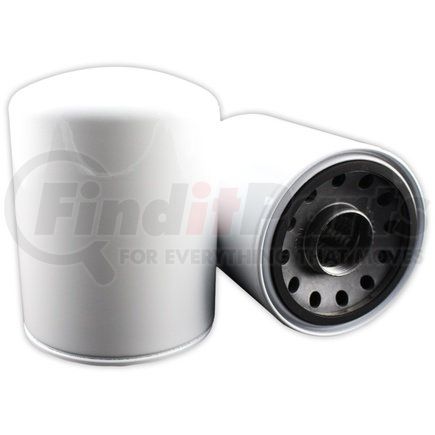

(888) 312-8812 Login SignupMAIN FILTER MF0586619 Aftermarket Replacement Spin-On Fuel Filter with 10 Micron Rating, Cellulose, Outside-In Flow
MSRP: $69.28
$5799
Save $11.29
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
MAIN FILTER MF0586619 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM HIFI p/n SH63776
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0586619 replaces OEM SH63776 by HIFI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 5.079 |
| Outside Diameter Bottom | 5.079 |
| Thread Size | 1.25 |
| Threads | 11 BSP |
| BPVS Setting PSI | 25.4 |
| ADBV | NO |
| Burst Pressure | 246.6 |
| Collapse Pressure | 72.5 |
| Flow Rate GPM | 79 GPM |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 41.7384 |
| Filter Area sq in | 1044 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 2/10 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM HIFI p/n SH63776
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0586619 replaces OEM SH63776 by HIFI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM HIFI p/n SH63776
- All of our elements are manufactured following ISO specifications.
- Main Filter MF0586619 replaces OEM SH63776 by HIFI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
MAIN FILTER MF0586619 Specifications
Product Attributes
| Micron Rating | 10 |
| Product Media | Cellulose |
| Height (in.) | 8.95 |
| Wrap | No |
| Bypass | Yes |
| Handle | No |
| Thread Size | 1.25 |
| Thread Type | BSP |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Top) | 5.08 in. |
| BPVS Setting (PSI) | 25.4 |
| Burst Pressure | 246.6 |
| Collapse Pressure | 72.5 |
| ADBV | Yes |
| Flow Rater | 79 GPM |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Dust Holding Capacity | 41.74 grams |
| Filter Area (sq. in.) | 1044 |
| Flow Direction | Outside-In |
| Beta Ratio 1 | 2/10 |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
MAIN FILTER MF0586619 Cross References
We have 1 alternatives for the MF0586619 by MAIN FILTER:
