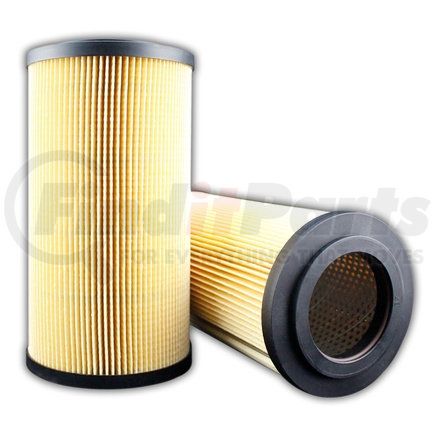

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 5.118
Inide Diameter Top 2.992
Outside Diameter Bottom 5.118
Inside Diameter Bottom 2.992
Collapse Pressure 145
Operating Temp Min F -13
Operating Temp Max F 248
Capacity gr 46.44
Filter Area sq in 1161
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Beta Ratio 1 2/10
Micron 1 10

Features & Benefits

  • Interchange/replacement for OEM FILTER MART p/n 335854
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0037948 replaces OEM 335854 by FILTER MART and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

MAIN FILTER MF0037948 Cross Reference

We have 1 alternatives for the MF0037948 by MAIN FILTER:
