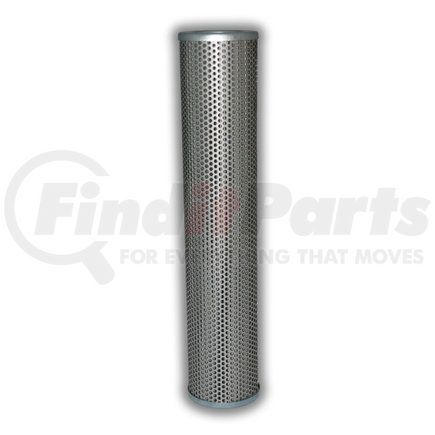

(888) 312-8812 Login SignupMAIN FILTER MF0592087 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Inside-Out Flow
MSRP: $66.77
$5999
Save $6.78
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 7
MAIN FILTER MF0592087 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM SCHUPP p/n HY9538
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0592087 replaces OEM HY9538 by SCHUPP and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.83 |
| Inide Diameter Top | 0.33 |
| Outside Diameter Bottom | 2.83 |
| Inside Diameter Bottom | 1.77 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 46.9654 |
| Filter Area sq in | 523 |
| Flow Direction | Inside-Out |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM SCHUPP p/n HY9538
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0592087 replaces OEM HY9538 by SCHUPP and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Interchange/replacement for OEM SCHUPP p/n HY9538
- Images may be a general representations of products
MAIN FILTER MF0592087 Specifications
Product Attributes
| Height (in.) | 13.78 |
| Bypass | No |
| Micron Rating | 20 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Outside Diameter (Bottom) | 2.83 in. |
| Product Media | Glass |
| Wrap | Yes |
| Dust Holding Capacity | 46.97 grams |
| Filter Area (sq. in.) | 523 |
| Beta Ratio 1 | 200/20.7 |
| Outside Diameter (Top) | 2.83 in. |
| Inside Diameter (Top) | 0.33 in. |
| Handle | No |
| Inside Diameter (Bottom) | 1.77 in. |
| Beta Ratio 2 | 1000/26.6 |
| Fluid Type | HH / HL / HM / HV |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Collapse Pressure | 145 |
| Flow Direction | Inside-Out |
MAIN FILTER MF0592087 Part Interchanges
| Brand | Part Number |
|---|---|
| Schupp | HY9538 |
MAIN FILTER MF0592087 Cross References
We have 1 alternatives for the MF0592087 by MAIN FILTER:
