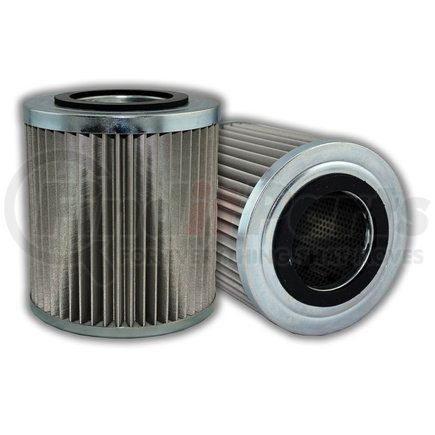

(888) 312-8812 Login SignupMAIN FILTER MF0417011 Aftermarket Replacement Hydraulic Filter with 60 Micron Rating, Wire Mesh, Outside-In Flow
Tap to view 2 more
MSRP: $77.93
$6949
Save $8.44
Limited availability at this price!
In Stock
Get it by Friday, Jan 9
MAIN FILTER MF0417011 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM SF FILTER p/n HY25020
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0417011 replaces OEM HY25020 by SF FILTER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 5.118 |
| Inide Diameter Top | 0.748 |
| Outside Diameter Bottom | 5.118 |
| Inside Diameter Bottom | 2.559 |
| Collapse Pressure | 58 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Filter Area sq in | 321 |
| Flow Direction | Outside-In |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Micron 1 | 60 |
Features & Benefits
- Interchange/replacement for OEM SF FILTER p/n HY25020
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0417011 replaces OEM HY25020 by SF FILTER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM SF FILTER p/n HY25020
- Built using Quality Components with strict quality control.
- Images may be a general representations of products
- Main Filter MF0417011 replaces OEM HY25020 by SF FILTER and is compatible in fit, form and function.
- Images may be a general representations of products
MAIN FILTER MF0417011 Specifications
Product Attributes
| Height (in.) | 5.62 |
| Product Media | Wire Mesh |
| Handle | No |
| Inside Diameter (Top) | 0.75 in. |
| Wrap | No |
| Fluid Type | HH / HL / HM / HV |
| Inside Diameter (Bottom) | 2.56 in. |
| Gasket Material | Buna |
| Micron Rating | 60 |
| Collapse Pressure | 58 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Bottom) | 5.12 in. |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 321 |
| Flow Direction | Outside-In |
| Outside Diameter (Top) | 5.12 in. |
| Bypass | No |
MAIN FILTER MF0417011 Cross References
We have 1 alternatives for the MF0417011 by MAIN FILTER:
