(888) 312-8812 Login SignupMAIN FILTER MF0343658 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow

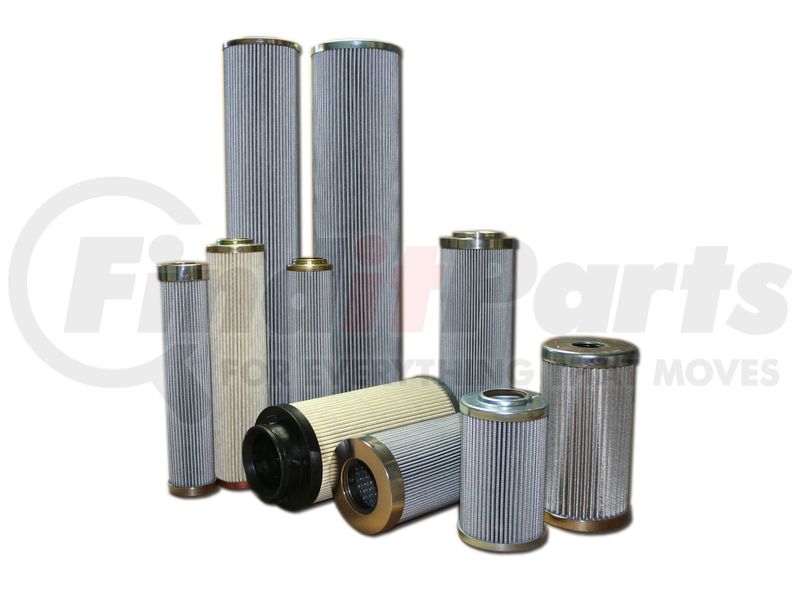

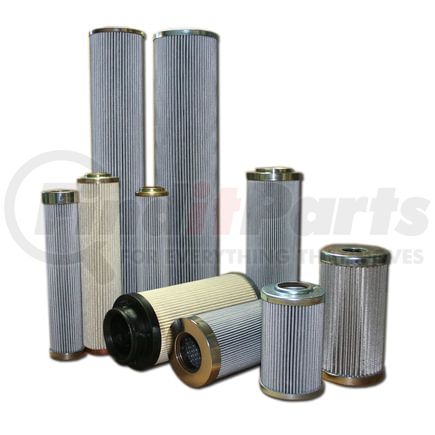

*Representative image - actual part not displayed
MSRP: $89.47
$6399
Save $25.48
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MAIN FILTER MF0343658 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n HF31001N1
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0343658 replaces OEM HF31001N1 by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.839 |
| Inide Diameter Top | 2.539 |
| Outside Diameter Bottom | 3.839 |
| Inside Diameter Bottom | 2.539 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 15.86766 |
| Filter Area sq in | 177 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM SEPARATION TECHNOLOGIES p/n HF31001N1
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Images may be general representations of products and may vary from image
- Main Filter MF0343658 replaces OEM HF31001N1 by SEPARATION TECHNOLOGIES and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- Images may be a general representations of products
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0343658 Specifications
Product Attributes
| Height (in.) | 12.28 |
| Product Media | Glass |
| Handle | Yes |
| Wrap | No |
| Fluid Type | HH / HL / HM / HV |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Collapse Pressure | 145 |
| Outside Diameter (Top) | 3.84 in. |
| Outside Diameter (Bottom) | 3.84 in. |
| Inside Diameter (Bottom) | 2.54 in. |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Gasket Material | Viton |
| Micron Rating | 20 |
| Flow Direction | Outside-In |
| Bypass | No |
| Dust Holding Capacity | 15.87 grams |
| Inside Diameter (Top) | 2.54 in. |
MAIN FILTER MF0343658 Part Interchanges
| Brand | Part Number |
|---|---|
| Separation Technologies | HF31001N1 |
MAIN FILTER MF0343658 Cross References
We have 1 alternatives for the MF0343658 by MAIN FILTER:
MAIN FILTER MF0343658 Customer Reviews
No reviews yet
Be the first to review this product!
