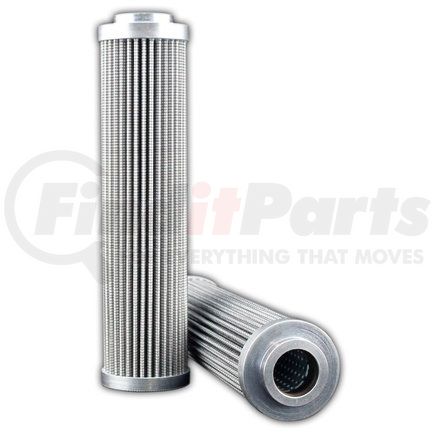

(888) 312-8812 Login SignupMAIN FILTER MF0506856 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MAIN FILTER MF0506856 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM PALL p/n HC2217FDP8H
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0506856 replaces OEM HC2217FDP8H by PALL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.85 |
| Inide Diameter Top | 0.87 |
| Outside Diameter Bottom | 1.85 |
| Collapse Pressure | 3045 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 13.14462 |
| Filter Area sq in | 178 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM PALL p/n HC2217FDP8H
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0506856 replaces OEM HC2217FDP8H by PALL and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0506856 Specifications
Product Attributes
| Micron Rating | 3 |
| Bypass | No |
| Wrap | No |
| Height (in.) | 7.59 |
| Outside Diameter (Bottom) | 1.85 in. |
| Product Media | Glass |
| Handle | No |
| Collapse Pressure | 3045 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Flow Direction | Outside-In |
| Dust Holding Capacity | 13.14 grams |
| Gasket Material | Viton |
| Inside Diameter (Top) | 0.87 in. |
| Filter Area (sq. in.) | 178 |
| Beta Ratio 1 | 200/3 |
| Outside Diameter (Top) | 1.85 in. |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 2 | 1000/4.5 |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
MAIN FILTER MF0506856 Cross References
| Brand | Part Number |
|---|---|
| PALL | HC2217FDP8H |
