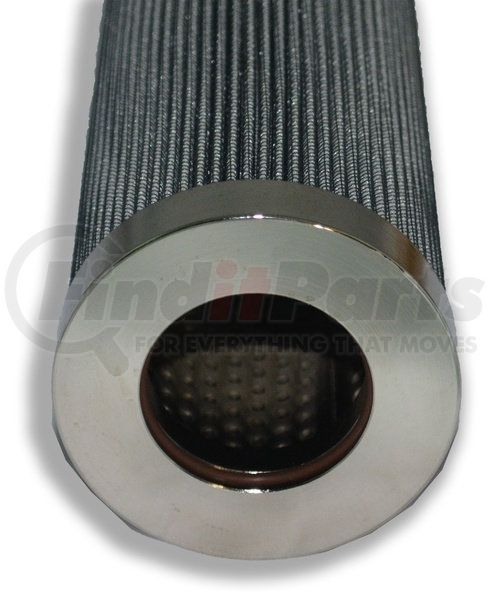

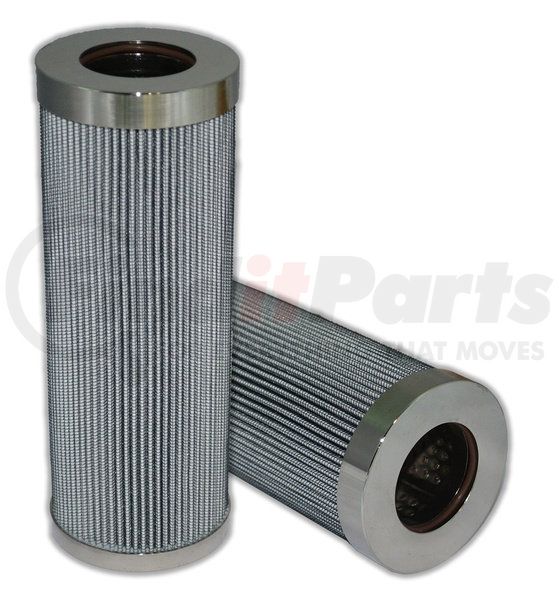

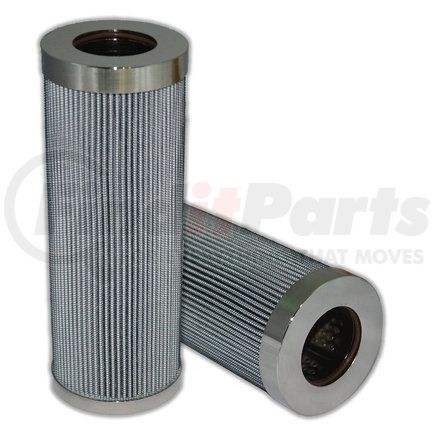

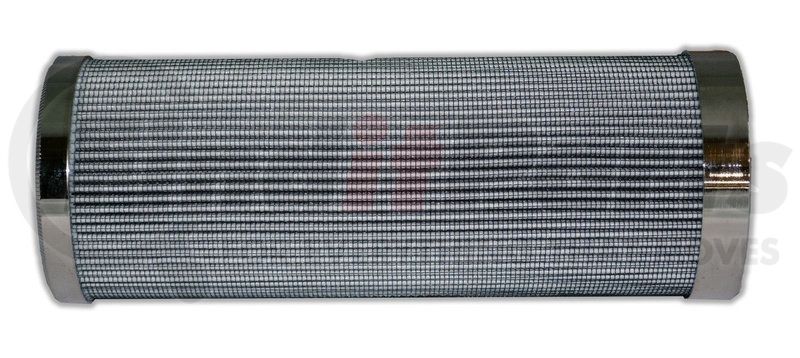

(888) 312-8812 Login SignupMAIN FILTER MF0320081 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
Tap to view 2 more
MSRP: $230.36
$20249
Save $27.87
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
MAIN FILTER MF0320081 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM HYDAC/HYCON p/n H96018003BH
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0320081 replaces OEM H96018003BH by HYDAC/HYCON and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.071 |
| Inide Diameter Top | 1.693 |
| Outside Diameter Bottom | 3.071 |
| Collapse Pressure | 3045 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 30.192 |
| Filter Area sq in | 408 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM HYDAC/HYCON p/n H96018003BH
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0320081 replaces OEM H96018003BH by HYDAC/HYCON and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Images may be a general representations of products
- Compatible with OEM filter in fit, form and function
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Interchange/replacement for OEM HYDAC/HYCON p/n H96018003BH
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0320081 Specifications
Product Attributes
| Bypass | No |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Fluid Type | HH / HL / HM / HV |
| Flow Direction | Outside-In |
| Micron Rating | 3 |
| Dust Holding Capacity | 30.19 grams |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Wrap | No |
| Product Media | Glass |
| Handle | No |
| Collapse Pressure | 3045 |
| Height (in.) | 8.26 |
| Gasket Material | Viton |
| Filter Area (sq. in.) | 408 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Bottom) | 3.07 in. |
| Outside Diameter (Top) | 3.07 in. |
| Inside Diameter (Top) | 1.69 in. |
MAIN FILTER MF0320081 Cross References
We have 1 alternatives for the MF0320081 by MAIN FILTER:
