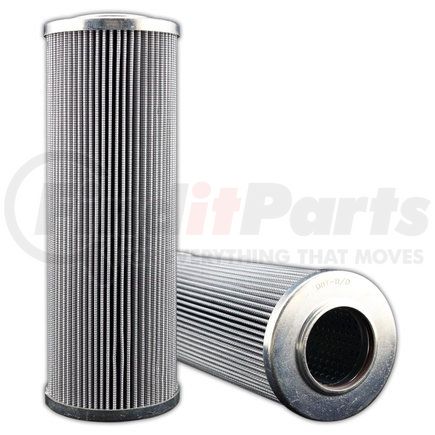

(888) 312-8812 Login SignupMAIN FILTER MF0262304 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MAIN FILTER MF0262304 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM PARKER p/n FC7272F003BS
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0262304 replaces OEM FC7272F003BS by PARKER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 3.563 |
| Inide Diameter Top | 1.898 |
| Outside Diameter Bottom | 3.563 |
| Collapse Pressure | 435 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 58.21025 |
| Filter Area sq in | 787 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM PARKER p/n FC7272F003BS
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0262304 replaces OEM FC7272F003BS by PARKER and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM PARKER p/n FC7272F003BS
- Main Filter MF0262304 replaces OEM FC7272F003BS by PARKER and is compatible in fit, form and function.
- Images may be a general representations of products
- Buy hydraulic filters direct from the manufacturer
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- Main Filter MF0262304 replaces OEM FC7272F003BS by PARKER and is compatible in fit, form and function.
MAIN FILTER MF0262304 Specifications
Product Attributes
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Collapse Pressure | 435 |
| Flow Direction | Outside-In |
| Filter Area (sq. in.) | 787 |
| Dust Holding Capacity | 58.21 grams |
| Gasket Material | Viton |
| Micron Rating | 3 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Inside Diameter (Top) | 1.9 in. |
| Outside Diameter (Top) | 3.56 in. |
| Bypass | No |
| Wrap | No |
| Handle | No |
| Outside Diameter (Bottom) | 3.56 in. |
| Fluid Type | HH / HL / HM / HV |
| Height (in.) | 9.96 |
| Product Media | Glass |
MAIN FILTER MF0262304 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | FC7272F003BS |
MAIN FILTER MF0262304 Cross References
We have 1 alternatives for the MF0262304 by MAIN FILTER:
