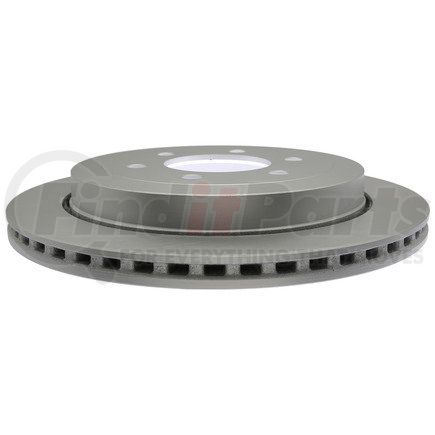

Centric 320.65120F - Centric GCX Rotor with Full Coating
$5899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] In | 9.098 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 9.063 |
| Misc Holes [cntrc] | 0 |
| Hat Id [cntrc] Mm | 230.200 |
| Weight [cntrc] Lbs | 20.650 |
| Max Pb Drum Dia [cntrc] Mm | 231.100 |
| Weight [cntrc] Kgs | 9.390 |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 55.000 MM |
| Overall Height | 2.165 IN |
| Outside Diameter | 342.000 MM |
| Outside Diameter | 13.465 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 9.043 IN |
| Nominal Drum Diameter | 229.700 MM |
| Bearings Included | No |
| Center Hole Diameter | 90.000 MM |
| Center Hole Diameter | 3.543 IN |
| Mounting Bolt Hole Circle Diameter | 135.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 16.000 MM |
| Stud/Lug Hole Diameter | 0.630 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590393088 |
CENTRIC 320.65120F Cross Reference
We have 4 alternatives for the 320.65120F by CENTRIC:
Fits Vehicles
- Ford Expedition (2007-2017)
- Lincoln Navigator (2007-2017)
