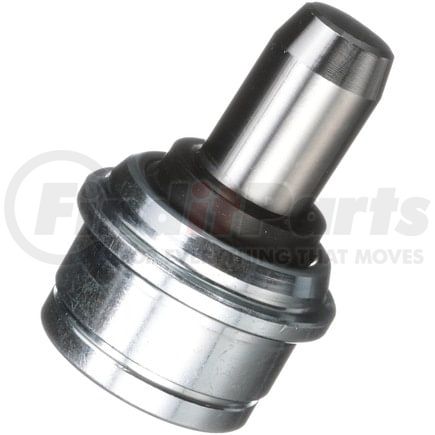

DELPHI TC5796 Part Description
DELPHI TC5796 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 82 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.476 IN |
| Mounting Bolt Length | 37.50 MM |
| Washers Included | No |
| Height | 3.701 IN |
| Height | 94.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.063 IN |
| Stud Thread Length | 27 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 56.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.063 IN |
| Mounting Bolt Thread Length | 27.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 1 Diameter | 0.591 IN |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 15.01 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604313695 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC5796 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K80196, K8432T |
| Ford | 5C2Z 3049-AA, 5C2Z 3049-BA, E7TZ 3049-A |
| MAS Industries | BJ85136, BJ85136XL |
| N/A | MK80196, F5UZ 3049-A, BJ85156, JBJ7025, MK8608T, GK80196, GS401117, TXK80196, TXK8608T |
DELPHI TC5796 Fits Vehicles
- Ford E-350 Econoline Club Wagon (1992-2002)
- Ford E-350 Super Duty (1999-2019, 2021)
- Ford E-450 Econoline Super Duty (1999-2002)
- Ford E-350 Club Wagon (2003-2005)
- Ford E-350 Econoline (1992-1998)
- Ford E-250 (2003-2014)
- Ford E-250 Econoline (1992-2002)
- Ford E-150 Econoline Club Wagon (1992-2002)
- Ford E-150 Club Wagon (2003-2005)
- Ford E-150 (2003-2014)
- Ford E-150 Econoline (1992-2002)
- Ford Econoline Super Duty (1996-1999)
- Ford E-450 Super Duty (2003-2019)
