(888) 312-8812 Login SignupBILSTEIN 41-284551 60mm Front Right Corner Module
Tap to view 2 more
$1,45299
Limited availability at this price!
In Stock
Get it by Monday, Jan 5
BILSTEIN 41-284551 Part Description
Manufacturer
Product Description

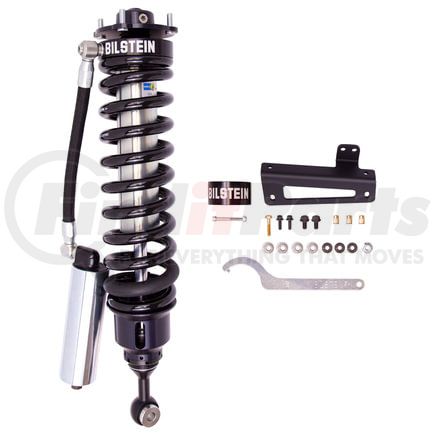

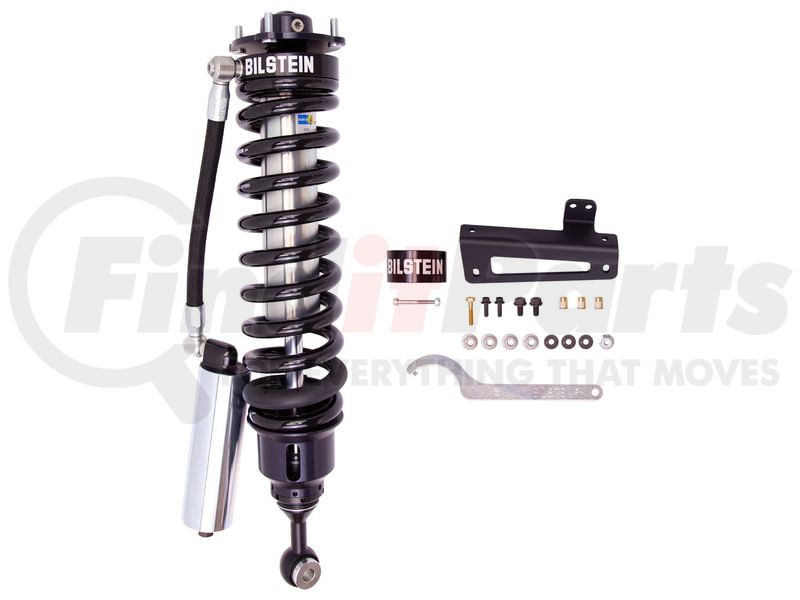

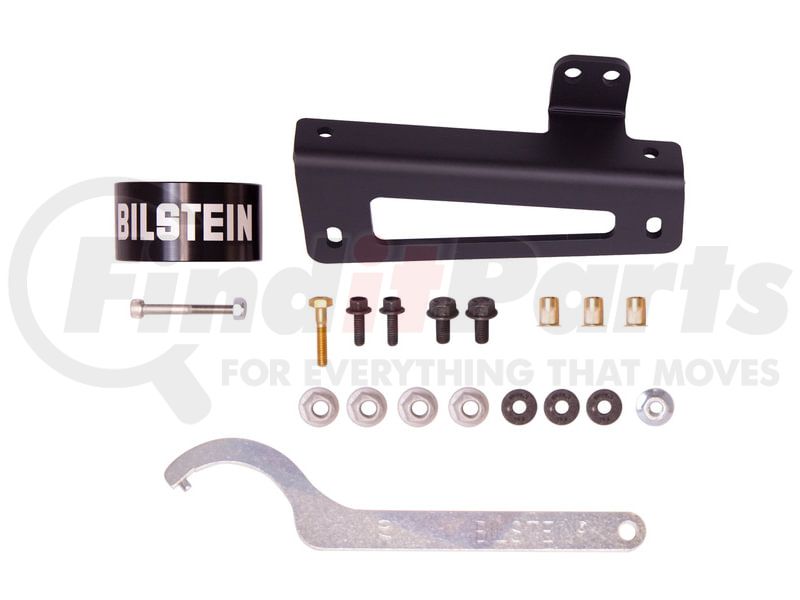

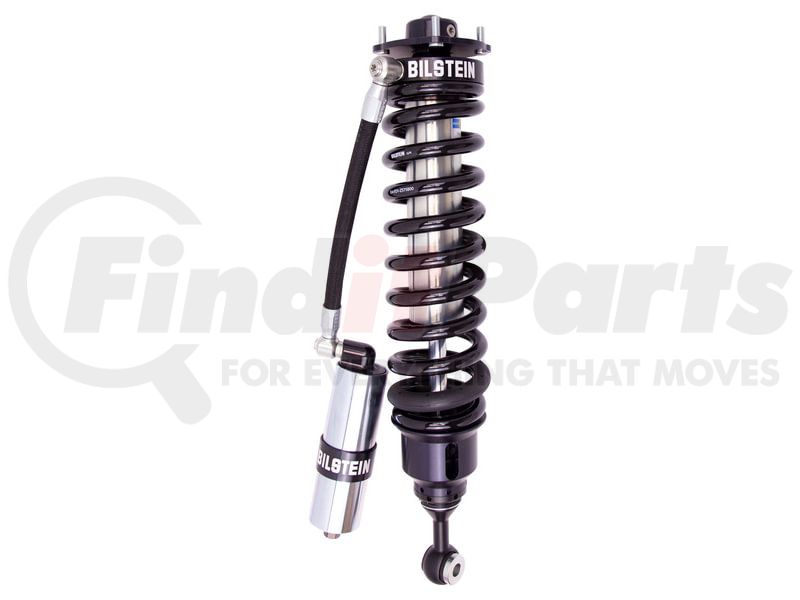

B8 8112 (ZoneControl CR) - Front Right Corner Module
Application Summary
Toyota Tundra 2021-2007
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
TOYOTA TUNDRA; 4WD; '07-; FR; B8 81
BILSTEIN 41-284551 Specifications
Product Attributes
| Adjustable Damping | Non-Adjustable |
| Aftermarket Upper Arms Required | Yes |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (id) | 60mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (in) | 19.43 |
| Collapsed Length (mm) | 493.6 |
| Extended Length (in) | 25.79 |
| Extended Length (mm) | 655.1 |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16.1mm |
| Optional Heavy Load Springs | N/A |
| RESERVOIR | Yes |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Special |
| Segment | Light Truck |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Refurbished Part | N |
| Remanufactured Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| UPC | 00651860838946 |
BILSTEIN 41-284551 Fits Vehicles
- Toyota Tundra (2007-2021)
BILSTEIN 41-284551 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 41-284551 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
