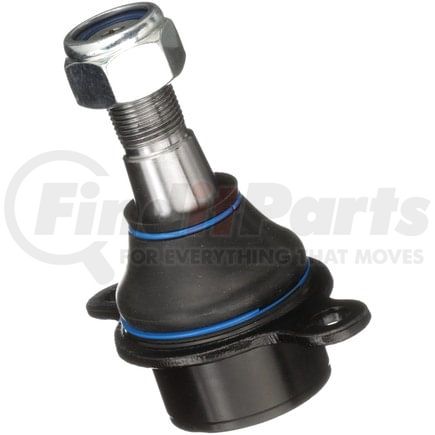

Delphi TC7458 - Ball Joint
$7799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.217 IN |
| Maximum Outside Diameter | 56.3 MM |
| Color | Silver |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12.0 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56.3 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.071 IN |
| Height | 103.4 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| 4966 | 1.213 IN |
| Stud Thread Length | 30.8 MM |
| Stud Type | Threaded |
| Mounting Type | Pressed |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.681 IN |
| Stud Tapered End 2 Diameter | 17.3 MM |
| 9213 | 0.539 IN |
| Stud Tapered End 1 Diameter | 13.7 MM |
| Stud Thread Pitch | 1.75 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604353660 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ford Transit-350 (2015-2018)
- Ford Transit-150 (2015-2018)
- Ford Transit-350 HD (2015-2018)
- Ford Transit-250 (2015-2018)
