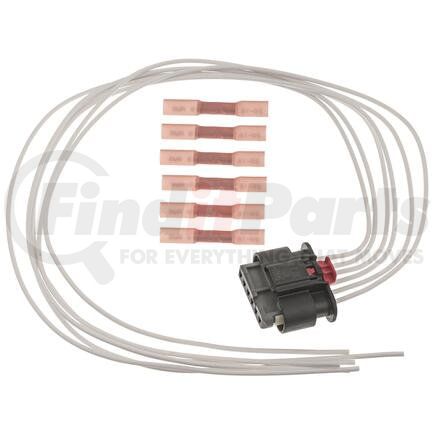

Standard Ignition S2504 - Multi Function Connector
- Part Number
- S2504
- Manufacturer
- STANDARD IGNITION
- Description
-
Multi Function Connector
details
$5899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Multi Function Connector
Features & Benefits
- Protective Tubing Included
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
Product Attributes
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Terminal Gender | Female |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| Wire Quantity | 6 |
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Contact Terminal Material | Metal |
| Gauge | 18 |
| Harness Length (mm.) | 450 |
| Harness Length - cm | 45 |
| Harness Length - inches | 18 |
| Housing Length (in) | 1 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 6 |
| Number of Wires | 6 |
| Splice Connectors Included | Yes |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 18 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8536908585 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086572697 |
Part Interchanges
Fits Vehicles
- GMC Savana 3500 (2018-2019)
- Chevrolet Express 3500 (2018-2019)
- GMC Savana 2500 (2018-2019)
- Chevrolet Express 2500 (2018-2019)
- GMC Terrain (2018-2019)
- Chevrolet Equinox (2018-2019)
- Chevrolet Silverado 3500 HD (2017-2019)
- GMC Sierra 2500 HD (2017-2019)
- GMC Sierra 3500 HD (2017-2019)
- Chevrolet Silverado 2500 HD (2017-2019)
- Chevrolet Colorado (2016-2019)
- Chevrolet Cruze (2017-2019)
- GMC Canyon (2016-2019)
