(888) 312-8812 Login SignupSTANDARD IGNITION S2500 Multi Function Connector
Tap to view 3 more
$5649
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
STANDARD IGNITION S2500 Part Description
Manufacturer
Product Description

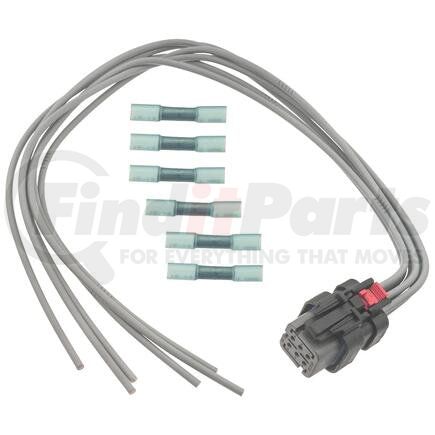

Multi Function Connector
Features & Benefits
- Protective Tubing Included
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
STANDARD IGNITION S2500 Specifications
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Gauge | 14 ga. |
| Harness Length (mm.) | 440 |
| Harness Length - cm | 45 |
| Harness Length - inches | 17.5 |
| Housing Length (in) | 1 1/4 |
| Length - Inches | 1.625 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 6 |
| Number of Wires | 6 |
| Splice Connectors Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Water Resistant | Yes |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 14 |
| Wire Quantity | 6 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 17.5 |
| Wiring Harness Length (mm) | 444.5 |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8536908585 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086572574 |
STANDARD IGNITION S2500 Part Interchanges
| Brand | Part Number |
|---|---|
| Echlin | EC2411 |
| ACDelco | PT2621 |
| BWD | PT2484 |
| General Motors | 13578974, 13579574 |
| N/A | PT2621, CONB11294 |
STANDARD IGNITION S2500 Fits Vehicles
- GMC Savana 4500 (2010-2016)
- Chevrolet Express 4500 (2010-2016)
- GMC Sierra 3500 HD (2011-2016)
- Chevrolet Express 2500 (2010-2016)
- GMC Sierra 2500 HD (2011-2016)
- Chevrolet Silverado 3500 HD (2011-2016)
- Chevrolet Silverado 2500 HD (2011-2016)
- Chevrolet Express 3500 (2010-2016)
- GMC Savana 3500 (2010-2016)
- GMC Savana 2500 (2010-2016)
