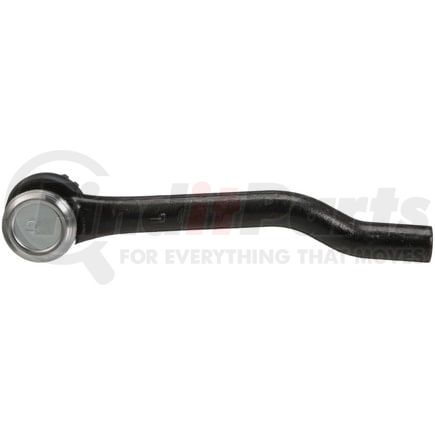

Delphi TA6319 - Steering Tie Rod End - LH, Outer, Non-Adjustable, Non-Greaseable
$2949
5 day lead time
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
Position(s) | Left Outer |
Item Grade | Standard Replacement |
Color | Black |
Pre-Greased | Yes |
Grease Fitting Included | No |
Dust Boot Included | Yes |
Width | 46.5 MM |
Type | Bent |
Mounting Hardware Included | Yes |
End 2 Thread Diameter | 0.551 IN |
Height | 78.5 MM |
Grade Type | Standard |
Housing Material | Steel |
36 | 0.787 IN |
Tube Diameter | 20.0 MM |
Adjustable | No |
Greasable | No |
Weight | 1.45 lb |
Cone Outside Diameter | 18.1 MM |
Bearing Material | Polyoxymethilen (POM) |
End 1 Thread Direction | Clockwise (Right) |
End 2 Thread Direction | Clockwise (Right) |
Stud Type | Threaded |
End 1 Thread Pitch | 1.5 MM |
Length Stud Center to End | 8.11 IN |
Length Stud Center to End | 206.0 MM |
Dust Boot Material | Choloroprene Rubber (CR) |
Tie Rod Material | Steel |
End 1 Thread Diameter | 0.472 IN |
Additional Information
Harmonized Tariff Code (HTS) | 8708806590 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
Harmonized Tariff Code (Schedule B) | 8708807000 |
Country of Origin (Primary) | TR |
UPC | 00689604357200 |
VMRS Code | 011001031 |
UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Honda Passport (2019-2021)
- Honda Ridgeline (2017-2020)
- Honda Pilot (2016-2021)
- Acura MDX (2014-2020)
