CONMET part description

Product Description

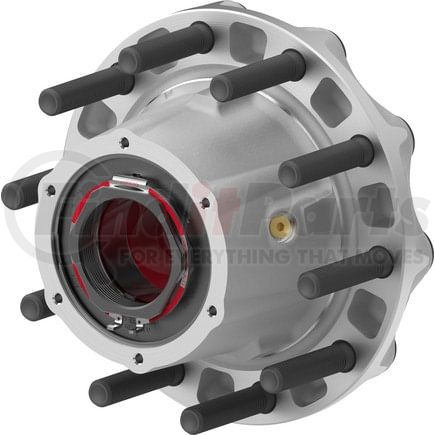

Aluminum PreSet Plus TP Trailer

Product Attributes

Axle	TP
Axle Position	Trailer
Bearing Number Inboard - 246	432
Bearing Number Outboard - 245	432
Brake Type	Drum
Flange Offset	1.418 IN
Hub Mounting System	HP10
Hub Rating	12500 PG
Lead Time	5 days
Material	Aluminum
Weight	51.8 PG
Wheel Stud Bolt Circle Diameter	11.25 IN
Wheel Stud Standout	3.81 IN
Wheel Stud Thread	M22 X 1.5 mm MM

Additional Information

Country of Origin (Primary)	US
UPC	00810004774933
VMRS Code	018004030
