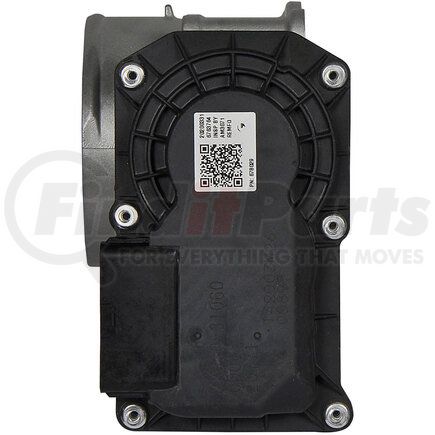

A-1 Cardone 67-8029 - Fuel Injection Throttle Body
- Part Number
- 67-8029
- Manufacturer
- A-1 CARDONE
- Description
-
Fuel Injection Throttle Body
details
$22199
+$30.00 Core Deposit
Total price w/ core: $251.99
In stock
limited availability at this price!
. Learn more
A-1 CARDONE part description
Product Description
Fuel Injection Throttle Body
Application Summary
Lexus ES350 2022-20, RX350 2022-16, RX350L 2022-18, RX450h 2022-16, RX450hL 2022-18; Toyota Avalon 2022-19, Camry 2022-18, Highlander 2022-17, Sienna 2020-17, Tacoma 2022-20
Features & Benefits
- Each unit is disassembled and meticulously inspected. Each component is inspected, remanufactured or replaced resulting in reliable and consistent performance.
- A specialized component cleaning process prevents the throttle bore surface from being deformed, ensuring optimum air flow.
- The high and low integrated throttle position sensors are tested to match O.E. characteristics throughout the entire operational range.
- Final assemblies are tested for all critical functions, including response time and air flow at multiple points.
- Each unit is guaranteed to function like the original.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Throttle Body, Throttle, Fuel Injection Throttle Body, Intake, Air Intake, Throttle Valve, Carburetor, Manifold, TBI, ETB, Electronic Throttle Body, Mechanical Throttle Body, Throttle Bore, Throttle Blade
Product Attributes
| Package Contents | Electronic Throttle Body; Instruction Sheet |
| Product Condition | Remanufactured |
| Housing Material | Aluminum |
| Housing Color/Finish | Gray |
| Throttle Body Actuation Type | Electric |
| Throttle Body Inlet Shape | Round |
| Throttle Body Outlet Shape | Round |
| E-waste | Yes |
| FAQs | When an Electronic Throttle Body fails, the controlling module will illuminate the MIL/SES/CEL, the module will then activate a fail-safe mode operation and gradually reduce the engine’s speed back to an idle rpm. |
| Features and Benefits | The high and low integrated throttle position sensors are tested to match OE characteristics throughout the entire operational range. |
| Throttle Body Material | Plastic, Steel, Aluminum |
| Throttle Body Finish | Natural |
| Throttle Body Type | Electric |
| Inlet Type | Round |
| Outlet Type | Round |
| Venturi Quantity | 1 |
| Original Equipment Replacement | Yes |
| Outlet Diameter (mm) | 70 |
| Inlet Diameter (mm) | 75 |
| Bore Diameter (mm) | 69 |
| Adjustable | No |
| Bore Diameter | 2.72 IN |
| Bore Diameter | 69 MM |
| Fuel Injectors Included | No |
| Fuel System Grade | Regular |
| Fuel System Type | Gas |
| Idle Air Control Motor Included | No |
| Inlet Diameter | 2.956 IN |
| Inlet Diameter | 75 MM |
| Inlet Type | Circle |
| Mounting Hardware Included | No |
| Outlet Diameter | 70 MM |
| Outlet Diameter | 2.759 IN |
| Outlet Quantity | 1 |
| Outlet Type | Circle |
| Throttle Body Finish | Natural |
| Throttle Body Material | Plastic; Steel; Aluminum |
| Throttle Body Spacer Included | No |
| Throttle Body Type | Electric |
| Throttle Position Sensor Included | Yes |
| Venturi Quantity | 1 |
| Connector Shape | Rectangular |
| Gaskets or Seal Included | No |
| Terminal Type | Blade |
| Contains Electronic Components | Circuit Board |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | Y |
| Warranty Distance | 18000 |
| Warranty Distance UOM | DH |
| Warranty Special UOM | TX |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8481800081 |
| Harmonized Tariff Code (Schedule B) | 8481809035 |
| Harmonized Tariff Code (HTS) | 8481809020 |
| UPC | 00884548283602 |
Part Interchanges
Fits Vehicles
- Toyota Tacoma (2016-2023)
- Lexus ES350 (2020-2023)
- Lexus RX350L (2018-2022)
- Toyota Avalon (2019-2022)
- Lexus RX450hL (2018-2022)
- Toyota Sienna (2017-2020)
- Toyota Camry (2018-2024)
- Toyota Highlander (2017-2022)
- Lexus RX450h (2016-2022)
- Lexus RX350 (2016-2022)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
