*Representative image - actual part not displayed

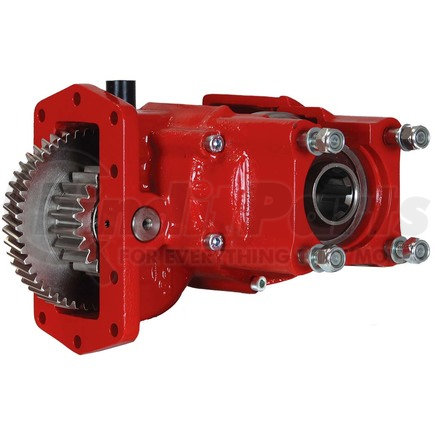

Bezares USA 3252PME633SB - Power Take Off (PTO) Assembly - Hot Shift, Hydraulic Shifting, 2-Gears, Allison, 10-Bolts, 96% Ratio
- Part Number
- 3252PME633SB
- Manufacturer
- BEZARES USA
- Description
-
Power Take Off (PTO) Assembly - Hot Shift, Hydraulic Shifting, 2-Gears, Allison, 10-Bolts, 96% Ratio
details
$2,28099
Limited Availability
. Learn more
BEZARES USA part description
| Version: | Pressure Lube Idler |
| Internal Ratios: | 0.96 |
| Shifter Type: | Electric 12V. Over Hydraulic |
| Input Gear: | Allison |
| Assembly Arrangement: | Left, Forward |
| Output Type: | SAE “BB” 2/4 bolt 15T |
| Intermittent Service Max. Torque (Lb. FT) | 410 |
| Intermittent Service Max. Power (HP @1000rpm) | 78 |
| Continuous Service Max. Torque (Lb. FT) | 310 |
| Continuous Service Max. Power (HP @ 1000rpm) | 59 |
| Warranty: | Products manufactured by Bezares are warranted to be free of defects in materials and workmanship for a period of twelve months from date of installation if proper documentation is provided, otherwise twelve months from invoice date shall apply. If requested by Bezares USA, Ltd., products or parts for which a warranty claim is made are to be returned transportation prepaid to Bezares USA, Ltd. Any product to be returned or claimed to be defective must be held for shipping instructions to Bezares USA, Ltd. |
| Transmission: |
Fits the Following Transmissions 3000-EVS, 3000-MH, 3000-RDS, 3000-TRV, 3200-TRV, 3500-EVS, 4000-EVS, 4000-TRV, 4500-EVS, 4500-RDS, 4700-EVS, 4700-OFS, 4700-RDS, 4800-EVS, HD-4070P, MD-3066P, 3500-RDS, 4000-MH, 4000-RDS |
| CHELSEA P/N | NOTES |
| 280GMFJPB5RF | |
| 280GPFJPB5RF |
Bezares USA 3252 Series PTO
The Bezares USA 3252 Series PTO is a standard output type hydraulic 10-bolt hot shift 2 gear PTO with low profile. It is known for its rugged design and all cast iron construction for maximum durability. Made with the highest quality sealing components and bearings, this series offers high technical performance, allowing it to work even under the harshest conditions and applications.
Features & Benefits
- With gears that go through deep gear tooth carburization for longer gear life
- Features hydraulic shifting and internal lubrication for cooler operation and improved bearing life
- Can be mounted on both sides of the transmission
- Offered in a wide range of internal ratios and most output options: SAE B, SAE BB or ISO 4 bolts
| Type | Hot Shift |
| Make | Allison |
BEZARES USA 3252PME633SB Cross Reference
We have 3 alternatives for the 3252PME633SB by BEZARES USA:
Based in Toledo, Spain, Bezares USA® is one of the world's biggest suppliers of power takeoffs (PTOs) and hydraulic pumps and accessories. It maintains a dominant market share in Spain, the U.K., and Sweden and caters to customers in more than 80 countries. With decades of experience in the European market, Bezares offers a wide range of PTO units and components for Isuzu, Mercedes, Mitsubishi, and Volvo transmissions, hydraulic pumps, dump pumps, birotational gear pumps, piston pumps, motors, and a range of auxiliary hydraulic components for trucks and industrial vehicles. All Bezares USA components draw from more than 90 years of experience and leadership in the industry.
