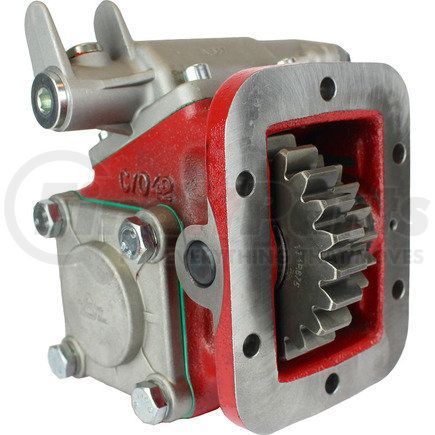

*Representative image - actual part not displayed
Bezares USA 1000XON171RA - Power Take Off (PTO) Assembly - Pneumatic Shifting, 2-Gears, Single Speed, Standard Mounting, 6-Bolts, 1:1.25 Ratio
- Part Number
- 1000XON171RA
- Manufacturer
- BEZARES USA
- Description
-
Power Take Off (PTO) Assembly - Pneumatic Shifting, 2-Gears, Single Speed, Standard Mounting, 6-Bolts, 1:1.25 Ratio
details
$87599
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
BEZARES USA part description
| Version: | Standard |
| Internal Ratios: | 1:1.25 800834 |
| Shifter Type: | Air without 101 Air Kit |
| Input Gear: | Eaton 6305 A (R/680) |
| Assembly Arrangement: | Right, Forward |
| Output Type: | SAE “B” 2/4 bolt 13T. rotatable |
| Intermittent Service Max. Torque (Lb. FT) | 250 |
| Intermittent Service Max. Power (HP @1000rpm) | 49 |
| Continuous Service Max. Torque (Lb. FT) | 178 |
| Continuous Service Max. Power (HP @ 1000rpm) | 35 |
| Warranty: | Products manufactured by Bezares are warranted to be free of defects in materials and workmanship for a period of twelve months from date of installation if proper documentation is provided, otherwise twelve months from invoice date shall apply. If requested by Bezares USA, Ltd., products or parts for which a warranty claim is made are to be returned transportation prepaid to Bezares USA, Ltd. Any product to be returned or claimed to be defective must be held for shipping instructions to Bezares USA, Ltd. |
| Transmission: |
Fits the Following Transmissions FM-15D310B-LST, FM-15E310B-LAS, RT-13609A/H, RTLO-17610B/B-T2, RTLO-18610B/B-T2, RTLO-9118A-MT, RTO-11813, RTO-14713, RTO-14813, RTO-15813, RT-11109A-AT, RT-12109A-AT, RT-14109A-AT, RT-9109A-AT, RT-7608LL, RT-8609, FO-10E310C-VAS, FO-12E310C-VAS, FO-14E309ALL-VMS, FO-14E310C-LAS/VAS, FO-14E313A-MHP, FO-14E318B-MXP/VXP, FO-16E310C-LAS/VAS, FO-16E313A-MHP, FO-16E318B-MXP/VXP, FO-20E318B-MXP/VXP, RTLO-16913L-BDM3, RTAO-16710C-AC/AS, RTLO-16913-LHS-D, A443, MO-35A4, T-18, T-98-1P, T-98-1Z, T-98A-1, T-98A-1B, T-98A-1C, 1000-EVS, 1000-MH, 1000-RDS, 2100-EVS, 2100-MH, 2200-MH, 2100-RDS, 2200-EVS, 2200-RDS, 2300-RDS, 2500-EVS, 2500-MH, 2500-RDS, B-210, B-220, MT-640, MT-644-CR, MT-648, MT-650, MT-654, MT-653, S5-42/4.14, S5-47 / 5.08-0.77, S5-47 / 5.72-0.76, S6-650, S6-750, ASO10-ESP, ASO10-VP10, ATO-100-4D, CM-4052-A, CM-4052-D, CM-4054A(301329)(301420), CM-4054D(301343)(301421), CM-4954A(301386), CM-4954D(301387), CV-31, CV-34, CV-37F, CV-67-F, EPSO175-16M, ES42-5A(301438), ES42-5D(301439), ES43-5A(301510)(301633), ES43-5D(301511)(301634), ES46-5A, ES52-5D(301456), ES60-5F(301482), ES68-5D, ES72-5C, ES72-5D, PS105-7LL(301464), PS110-7A(301519), PS110-7B(301518), PS125-7B(301445), PS125-7A, PS125-6L, PS130-12A(301484), PS130-5A(301470), PS130-6L(301465), PS140-7A(301444), PS140-5, PS85-10LL, PS85-14-4L(301525), PS86-10V(301587), PSO10-ESP, PSO105-7LL, PSO120-8LL(301644), PSO125-10S(301504)(301561), PSO125-10V(301589), PSO140-6A(301472), PSO140-6C(301486), PSO145-9R, PSO150-16A(301641), PSO95-9, PSX-150-9S, T-9505-2A(301408), TSPO145-14A, TSPO155-16A, TSPO155-14HP, TSPO175-16M, TSPO175-18M, 1007-3A(301121)(301208), 1007-2A(301117)(301206), 1052A(301091), 1054A(301092), 1062A(301101), 1064A(301102), 1107-2A(301201), 1207-2A(301195), 1211-3A, 1211-5A, 1214-3A(301130)(301212), 1214-5A(301131)(301213), 1252A(301094), 1254A(301095), 1262A(301105), 1263A(301107), 1263B(301109), 1264A(301106), 1265A(301108), 1310-2A(301292), 1310-4A(301317), 1352A(301235), 1362A(301169), 1372B(301325)(301405), 1374A(301272), 1463C(301357), 3153-A, 3853, 5752(8-BOLT&6-BOLTOPENING), 5752A, 5752B, 5753, 5753A, 5756, 5756A, 5756B(8-BOLT&6-BOLTOPENING), 6852D, 6852E, 6852G, 6852L, 6852Q, 6852R, 6853, 6853A, 6853C, 6853G, 6853K, 6854, 6854G, 6855, 6855B, 6855C, 8041, 8041A, 8045, 8045A, 8051, 8051A, 8051B, 8051C, 8051D, 8052, 8052B, 8052D, 8054, 8054B, 8054D, 8055, 8055A, 8055B, 8055C, 8055D, 8542A, 8544A, 8552A, 8552B, 8553A, 8553B, 8554A, 8554B, 8555A, 8555B, MBT-660S-6O, MBT-660-6OA, SM-420, ML4, MM4, MM5, MT8, MW3, 225955, 591550, 591592, 591682, 591703, 591705, MO-11F10A-E11, MO-11F10A-D11, MO-11G10A-D11, MO-11G10A-E11, MO-11G10A-M11, MO-11G10A-S11, MO-11G9R-M11, MO-12F10A-E12, MO-12F10A-S12, MO-12F9A-S12, MO-12F9A-E12, MO-12G10A-D12, MO-12G10A-E12, MO-12G10A-M12, MO-12G10A-S12, MO-12G9A-D12, MO-12G9A-E12, MO-12G9A-M12, MO-12G9A-S12, MO-13F10A-E13, MO-13F9A-E13, MO-13F9A-S13, MO-13G10A-D13, MO-13G10A-E13, MO-13G10A-M13, MO-13G10A-S13, MO-13G9A-D13, MO-13G9A-E13, MO-13G9A-M13, MO-13G9A-S13, MO-13G9R-M13, MO-14F10A-E14, MO-14F10A-E16, MO-14F10A-M16, MO-14F10A-S14, MO-14F10A-S16, MO-14F10C-E16, MO-14F9A-E14, MO-14F9A-S14, MO-14G10A-D14, MO-14G10A-D16, MO-14G10A-E14, MO-14G10A-E16, MO-14G10A-M14, MO-14G10A-M16, MO-14G10A-S16, MO-14G9A-E14, MO-14G9A-M14, MO-15F10A-E15, MO-15F10A-S15, MO-14G9R-M14, MO-15G10A-D15, MO-15G10A-E15, MO-15G10A-S15, MO-16F10A-E16, MO-16F10A-M16, MO-16F10A-M18, MO-16F10A-S16, MO-16F10C-S16, MO-16G10A-D16, MO-16G10A-E16, MO-16G10A-M16, MO-16G10A-S16, REO9-125A, REO9-135A, REX10-115C, REX10-125C, REX10-135C, REX10-145C, REX10-155C, REX9-135B, RMX10-115C, RMX10-125C, RMX10-135C, RMX10-145-CT, RMX10-155C, RMX10-165C, RMX10-165-CT, RMX9-115R, RMX9-125A, RMX9-125R, RMX9-135A, RMX9-135R, RMX9-145A, RMX9-145R, RS10-145AT, RSO9-115B, RSX10-115A, RSX10-115C, RSX10-125A, RSX10-125C, RSX10-135A, RSX10-135C, RSX10-145A, RSX10-145C, RSX10-145-CT, RSX10-155A, RSX10-155C, RSX10-165A, RSX10-165CT, RSX9-115R, RSX9-125B, RSX9-135R, RSX9-145B, RSX9-145R, RSX9-145A, RSX9-135A, RSX9-125A, 203 transfer case, 205 transfer case, 441-RTJ, 541-12, 541-15, 541-16, 541-C, 541-CL, 541-DD12, 541-DD12A, 541-DD13, 541-DD14, 541-DD15, 541-DD15A, 541-DD16, 541-DD16A, 541-DD17, 541-DD17A, 541-DD17B, 541-DD18, 541-DD18A, 541-DD22B, 541-DD23B, 541-DG21, 541-FD2, 541-FD23B, 541-FD1, 541-FL1, 541-FL2, 541-FO1, 541-FO2, 541-GD11, 541-GD22, 541-GD23, 541-GD24, 541-GD24B, 541-GD25, 541-GL, 541-GO, 542-CO, 542-DO, 542-FO, 542-GO, T-1060A, T-107, T-1070, TRDL-107, TRDL-1070, TRDLG-1070, TRDXL-1071, TRL-107, TRL-1076, TRL-10760, TRL-1078, TRL-10780, TRTXL-107, TRTXL-1070, TRTXL-1070B, TRX-107, TRXL-107, TRXL-107A, TRXL-1070, TRXL-1070A, TRXL-1071, TRXL-1071A, TRXL-10710, TRXL-1076, TRXL-1078, X-107, X-1070, X-1070A, 1076, AT-1202, FOM-16D313E-LEP, FO-8406A-AW3, FO-8406A-ASX, FO-6406A-ASX, EDCO-6F107A, EDCO-6F107A-B, EDCO-6F107A-M, EDCO-6F107A-P, EH-6E606A-CD, EH-8E306A-T, EH-8E306A-U, EH-8E306A-UP, EH-8E306A-UPG, EH-8E306A-CD, F-5405-DM3, FAM-14810B, FO-5406B-DM3, FS-3005B (1988 & BEFORE), FS-5406N, FSB-6406B, RT-11609H, RT-12609H, RT-12710B-AS2, RT-14609H, RT-14709A, RTF-12710B, RTF-13709H, RTF-13710B, RTF-14710B, RTL-11710B/B-T2, RTL-14710B/B-T2, RTLO-11610B/B-T2, RTLO-12610B/B-T2, RTLO-13610B/B-T2, RTLO-14618A, RTLO-14913A/A-T2, RTLO-14918A-AS2, RTLO-14918A-AS3, RTLO-14918B-AS, RTLO-14918B-T2, RTLO-15610B/B-T2, RTLO-16610B/B-T2, RTLO-16913-T2, RTLO-16913A-T2, RTLO-16913L-LHP, RTLO-16918B-AS, RTLO-16918B-T2, RTLO-18718B-T2, RTLO-18913A-T2, RTLOF-18918B-AS, RTLOF-18918B-T2, RTLO-22918B-AS, RTLO-20918A-AS2, RTLO-20918B-AS, RTLO-20918B-T2, RTO-11609H, RTO-11909MLL, RTO-12609H, RTO-12710B-AS2, RTO-14710B-AS, RTO-14909-MLL, RTO-909B, RTX-16709H, T-11605D, T-14607B, TX-8607B, FS-4205B, FS-6005A, FS-6105A, FS-6205A, FS-6305A, RT-14715, EH-8E306A, F-5505B-DM3, F-8405-BDM3, F-5406B-DM3, FO-6406A-ASW, FO-6406B-DM3, FO-8406A-ASW, FO-8406B-DM3, FSBO-6406B, FSBO-8406B, FSO-6406A, FSO-8406A, FO-5506B-DM3 |
| CHELSEA P/N | NOTES |
| 442GSESXP3AK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXP3RB | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXP3XK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXS3AK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXS3RB | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXS3XK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXT3AK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXT3RB | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXT3XK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXV3AK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXV3RB | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442GSESXV3XK | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| 442XSESXP3AK | |
| 442XSESXP3RB | |
| 442XSESXP3XK | |
| 442XSESXS3AK | |
| 442XSESXS3RB | |
| 442XSESXS3XK | |
| 442XSESXT3AK | |
| 442XSESXT3RB | |
| 442XSESXT3XK | |
| 442XSESXV3AK | |
| 442XSESXV3RB | |
| 442XSESXV3XK |
| MUNCIE P/N | NOTES |
| TG6BF6312P1KX | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| TG6BF6312P1SX | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| TG6BF6313P1KX | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| TG6BF6313P1SX | Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit) |
| TG6SF6312P1KX | |
| TG6SF6312P1SX | |
| TG6SF6313P1KX | |
| TG6SF6313P1SX |
Bezares USA 1000 Series PTO
Made compatible with most common transmissions in the market, the Bezares USA 1000 Series PTO is an SAE six-hole, two gear-single speed, and standard mounting PTO. It is offered in different input gears, speed ratios, output shafts, and shifters. Also available in deep mount 1010 and 2010 series, all Bezares PTOs include large 12mm flange bolts so they can support larger pumps in the market.
Features & Benefits
- Designed with industry-exclusive idler shaft with locking nut and snap ring
- Gears go through deep gear tooth carburization for longer gear life
- With larger flange mounting hardware for additional support and failure reduction
- Product uses industry-leading Garlock gasket material, Viton o-ring material, and shaft seals for better tear resistance and leak prevention
- With a symmetrical design that allows for trouble-free installation and multiple configuration options
- Provides simple and robust mechanical air shift operation
- Offers improved operator experience with its quiet operational noise levels
- Designed for use on dump trucks and trailers, low boy, vacuum pumps, walking floor, and more
| Type | Standard 6/8 Bolts |
| Make | Aisin, Allison, Chevrolet, Eaton, Fuller, Mack, Warner |
BEZARES USA 1000XON171RA Cross Reference
We have 33 alternatives for the 1000XON171RA by BEZARES USA:
- EATON PT1000XON171RA
- CHELSEA 442GSESXP3AK
- CHELSEA 442GSESXP3RB
- CHELSEA 442GSESXP3XK
- CHELSEA 442GSESXS3AK
- CHELSEA 442GSESXS3RB
- CHELSEA 442GSESXS3XK
- CHELSEA 442GSESXT3AK
- CHELSEA 442GSESXT3RB
- CHELSEA 442GSESXT3XK
- CHELSEA 442GSESXV3AK
- CHELSEA 442GSESXV3RB
- CHELSEA 442GSESXV3XK
- CHELSEA 442XSESXP3AK
- CHELSEA 442XSESXP3RB
- CHELSEA 442XSESXP3XK
- CHELSEA 442XSESXS3AK
- CHELSEA 442XSESXS3RB
- CHELSEA 442XSESXS3XK
- CHELSEA 442XSESXT3AK
- CHELSEA 442XSESXT3RB
- CHELSEA 442XSESXT3XK
- CHELSEA 442XSESXV3AK
- CHELSEA 442XSESXV3RB
- CHELSEA 442XSESXV3XK
- MUNCIE POWER PRODUCTS TG6BF6312P1KX
- MUNCIE POWER PRODUCTS TG6BF6312P1SX
- MUNCIE POWER PRODUCTS TG6BF6313P1KX
- MUNCIE POWER PRODUCTS TG6BF6313P1SX
- MUNCIE POWER PRODUCTS TG6SF6312P1KX
- MUNCIE POWER PRODUCTS TG6SF6312P1SX
- MUNCIE POWER PRODUCTS TG6SF6313P1KX
- MUNCIE POWER PRODUCTS TG6SF6313P1SX
Based in Toledo, Spain, Bezares USA® is one of the world's biggest suppliers of power takeoffs (PTOs) and hydraulic pumps and accessories. It maintains a dominant market share in Spain, the U.K., and Sweden and caters to customers in more than 80 countries. With decades of experience in the European market, Bezares offers a wide range of PTO units and components for Isuzu, Mercedes, Mitsubishi, and Volvo transmissions, hydraulic pumps, dump pumps, birotational gear pumps, piston pumps, motors, and a range of auxiliary hydraulic components for trucks and industrial vehicles. All Bezares USA components draw from more than 90 years of experience and leadership in the industry.
