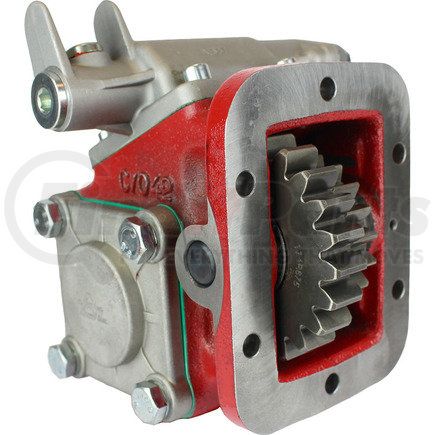

Name: Bezares USA 1000XCN173SE Power Take Off (PTO) Assembly - Pneumatic Shifting, 2-Gears, Single Speed, Standard Mounting, 6-Bolts, 1.0.73 Ratio
SKU: 1000xcn173se
Price: 824.49 USD
Availability: InStock

BEZARES USA part description

Version:	Standard
Internal Ratios:	1:0.73 800534
Shifter Type:	Air without 101 Air Kit
Input Gear:	Eaton 6305 A (R/680)
Assembly Arrangement:	Left, Forward
Output Type:	SAE Type 1 1/4” round shaft
Intermittent Service Max. Torque (Lb. FT)	250
Intermittent Service Max. Power (HP @1000rpm)	49
Continuous Service Max. Torque (Lb. FT)	178
Continuous Service Max. Power (HP @ 1000rpm)	35
Warranty:	Products manufactured by Bezares are warranted to be free of defects in materials and workmanship for a period of twelve months from date of installation if proper documentation is provided, otherwise twelve months from invoice date shall apply. If requested by Bezares USA, Ltd., products or parts for which a warranty claim is made are to be returned transportation prepaid to Bezares USA, Ltd. Any product to be returned or claimed to be defective must be held for shipping instructions to Bezares USA, Ltd.
Transmission:	Fits the Following Transmissions FM-15D310B-LST, FM-15E310B-LAS, RT-13609A/H, RTLO-17610B/B-T2, RTLO-18610B/B-T2, RTLO-9118A-MT, RTO-11813, RTO-14713, RTO-14813, RTO-15813, RT-11109A-AT, RT-12109A-AT, RT-14109A-AT, RT-9109A-AT, RT-7608LL, RT-8609, FO-10E310C-VAS, FO-12E310C-VAS, FO-14E309ALL-VMS, FO-14E310C-LAS/VAS, FO-14E313A-MHP, FO-14E318B-MXP/VXP, FO-16E310C-LAS/VAS, FO-16E313A-MHP, FO-16E318B-MXP/VXP, FO-20E318B-MXP/VXP, RTLO-16913L-BDM3, RTAO-16710C-AC/AS, RTLO-16913-LHS-D, A443, MO-35A4, T-18, T-98-1P, T-98-1Z, T-98A-1, T-98A-1B, T-98A-1C, 1000-EVS, 1000-MH, 1000-RDS, 2100-EVS, 2100-MH, 2200-MH, 2100-RDS, 2200-EVS, 2200-RDS, 2300-RDS, 2500-EVS, 2500-MH, 2500-RDS, B-210, B-220, MT-640, MT-644-CR, MT-648, MT-650, MT-654, MT-653, S5-42/4.14, S5-47 / 5.08-0.77, S5-47 / 5.72-0.76, S6-650, S6-750, ASO10-ESP, ASO10-VP10, ATO-100-4D, CM-4052-A, CM-4052-D, CM-4054A(301329)(301420), CM-4054D(301343)(301421), CM-4954A(301386), CM-4954D(301387), CV-31, CV-34, CV-37F, CV-67-F, EPSO175-16M, ES42-5A(301438), ES42-5D(301439), ES43-5A(301510)(301633), ES43-5D(301511)(301634), ES46-5A, ES52-5D(301456), ES60-5F(301482), ES68-5D, ES72-5C, ES72-5D, PS105-7LL(301464), PS110-7A(301519), PS110-7B(301518), PS125-7B(301445), PS125-7A, PS125-6L, PS130-12A(301484), PS130-5A(301470), PS130-6L(301465), PS140-7A(301444), PS140-5, PS85-10LL, PS85-14-4L(301525), PS86-10V(301587), PSO10-ESP, PSO105-7LL, PSO120-8LL(301644), PSO125-10S(301504)(301561), PSO125-10V(301589), PSO140-6A(301472), PSO140-6C(301486), PSO145-9R, PSO150-16A(301641), PSO95-9, PSX-150-9S, T-9505-2A(301408), TSPO145-14A, TSPO155-16A, TSPO155-14HP, TSPO175-16M, TSPO175-18M, 1007-3A(301121)(301208), 1007-2A(301117)(301206), 1052A(301091), 1054A(301092), 1062A(301101), 1064A(301102), 1107-2A(301201), 1207-2A(301195), 1211-3A, 1211-5A, 1214-3A(301130)(301212), 1214-5A(301131)(301213), 1252A(301094), 1254A(301095), 1262A(301105), 1263A(301107), 1263B(301109), 1264A(301106), 1265A(301108), 1310-2A(301292), 1310-4A(301317), 1352A(301235), 1362A(301169), 1372B(301325)(301405), 1374A(301272), 1463C(301357), 3153-A, 3853, 5752(8-BOLT&6-BOLTOPENING), 5752A, 5752B, 5753, 5753A, 5756, 5756A, 5756B(8-BOLT&6-BOLTOPENING), 6852D, 6852E, 6852G, 6852L, 6852Q, 6852R, 6853, 6853A, 6853C, 6853G, 6853K, 6854, 6854G, 6855, 6855B, 6855C, 8041, 8041A, 8045, 8045A, 8051, 8051A, 8051B, 8051C, 8051D, 8052, 8052B, 8052D, 8054, 8054B, 8054D, 8055, 8055A, 8055B, 8055C, 8055D, 8542A, 8544A, 8552A, 8552B, 8553A, 8553B, 8554A, 8554B, 8555A, 8555B, MBT-660S-6O, MBT-660-6OA, SM-420, ML4, MM4, MM5, MT8, MW3, 225955, 591550, 591592, 591682, 591703, 591705, MO-11F10A-E11, MO-11F10A-D11, MO-11G10A-D11, MO-11G10A-E11, MO-11G10A-M11, MO-11G10A-S11, MO-11G9R-M11, MO-12F10A-E12, MO-12F10A-S12, MO-12F9A-S12, MO-12F9A-E12, MO-12G10A-D12, MO-12G10A-E12, MO-12G10A-M12, MO-12G10A-S12, MO-12G9A-D12, MO-12G9A-E12, MO-12G9A-M12, MO-12G9A-S12, MO-13F10A-E13, MO-13F9A-E13, MO-13F9A-S13, MO-13G10A-D13, MO-13G10A-E13, MO-13G10A-M13, MO-13G10A-S13, MO-13G9A-D13, MO-13G9A-E13, MO-13G9A-M13, MO-13G9A-S13, MO-13G9R-M13, MO-14F10A-E14, MO-14F10A-E16, MO-14F10A-M16, MO-14F10A-S14, MO-14F10A-S16, MO-14F10C-E16, MO-14F9A-E14, MO-14F9A-S14, MO-14G10A-D14, MO-14G10A-D16, MO-14G10A-E14, MO-14G10A-E16, MO-14G10A-M14, MO-14G10A-M16, MO-14G10A-S16, MO-14G9A-E14, MO-14G9A-M14, MO-15F10A-E15, MO-15F10A-S15, MO-14G9R-M14, MO-15G10A-D15, MO-15G10A-E15, MO-15G10A-S15, MO-16F10A-E16, MO-16F10A-M16, MO-16F10A-M18, MO-16F10A-S16, MO-16F10C-S16, MO-16G10A-D16, MO-16G10A-E16, MO-16G10A-M16, MO-16G10A-S16, REO9-125A, REO9-135A, REX10-115C, REX10-125C, REX10-135C, REX10-145C, REX10-155C, REX9-135B, RMX10-115C, RMX10-125C, RMX10-135C, RMX10-145-CT, RMX10-155C, RMX10-165C, RMX10-165-CT, RMX9-115R, RMX9-125A, RMX9-125R, RMX9-135A, RMX9-135R, RMX9-145A, RMX9-145R, RS10-145AT, RSO9-115B, RSX10-115A, RSX10-115C, RSX10-125A, RSX10-125C, RSX10-135A, RSX10-135C, RSX10-145A, RSX10-145C, RSX10-145-CT, RSX10-155A, RSX10-155C, RSX10-165A, RSX10-165CT, RSX9-115R, RSX9-125B, RSX9-135R, RSX9-145B, RSX9-145R, RSX9-145A, RSX9-135A, RSX9-125A, 203 transfer case, 205 transfer case, 441-RTJ, 541-12, 541-15, 541-16, 541-C, 541-CL, 541-DD12, 541-DD12A, 541-DD13, 541-DD14, 541-DD15, 541-DD15A, 541-DD16, 541-DD16A, 541-DD17, 541-DD17A, 541-DD17B, 541-DD18, 541-DD18A, 541-DD22B, 541-DD23B, 541-DG21, 541-FD2, 541-FD23B, 541-FD1, 541-FL1, 541-FL2, 541-FO1, 541-FO2, 541-GD11, 541-GD22, 541-GD23, 541-GD24, 541-GD24B, 541-GD25, 541-GL, 541-GO, 542-CO, 542-DO, 542-FO, 542-GO, T-1060A, T-107, T-1070, TRDL-107, TRDL-1070, TRDLG-1070, TRDXL-1071, TRL-107, TRL-1076, TRL-10760, TRL-1078, TRL-10780, TRTXL-107, TRTXL-1070, TRTXL-1070B, TRX-107, TRXL-107, TRXL-107A, TRXL-1070, TRXL-1070A, TRXL-1071, TRXL-1071A, TRXL-10710, TRXL-1076, TRXL-1078, X-107, X-1070, X-1070A, 1076, AT-1202, FOM-16D313E-LEP, FO-8406A-AW3, FO-8406A-ASX, FO-6406A-ASX, EDCO-6F107A, EDCO-6F107A-B, EDCO-6F107A-M, EDCO-6F107A-P, EH-6E606A-CD, EH-8E306A-T, EH-8E306A-U, EH-8E306A-UP, EH-8E306A-UPG, EH-8E306A-CD, F-5405-DM3, FAM-14810B, FO-5406B-DM3, FS-3005B (1988 & BEFORE), FS-5406N, FSB-6406B, RT-11609H, RT-12609H, RT-12710B-AS2, RT-14609H, RT-14709A, RTF-12710B, RTF-13709H, RTF-13710B, RTF-14710B, RTL-11710B/B-T2, RTL-14710B/B-T2, RTLO-11610B/B-T2, RTLO-12610B/B-T2, RTLO-13610B/B-T2, RTLO-14618A, RTLO-14913A/A-T2, RTLO-14918A-AS2, RTLO-14918A-AS3, RTLO-14918B-AS, RTLO-14918B-T2, RTLO-15610B/B-T2, RTLO-16610B/B-T2, RTLO-16913-T2, RTLO-16913A-T2, RTLO-16913L-LHP, RTLO-16918B-AS, RTLO-16918B-T2, RTLO-18718B-T2, RTLO-18913A-T2, RTLOF-18918B-AS, RTLOF-18918B-T2, RTLO-22918B-AS, RTLO-20918A-AS2, RTLO-20918B-AS, RTLO-20918B-T2, RTO-11609H, RTO-11909MLL, RTO-12609H, RTO-12710B-AS2, RTO-14710B-AS, RTO-14909-MLL, RTO-909B, RTX-16709H, T-11605D, T-14607B, TX-8607B, FS-4205B, FS-6005A, FS-6105A, FS-6205A, FS-6305A, RT-14715, EH-8E306A, F-5505B-DM3, F-8405-BDM3, F-5406B-DM3, FO-6406A-ASW, FO-6406B-DM3, FO-8406A-ASW, FO-8406B-DM3, FSBO-6406B, FSBO-8406B, FSO-6406A, FSO-8406A, FO-5506B-DM3

Chelsea Cross Reference

CHELSEA P/N	NOTES
442GHESXP5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GHESXS5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GHESXT5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GHESXV5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GLESXP5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GLESXS5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GLESXT5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442GLESXV5XD	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
442XHESXP5XD
442XHESXS5XD
442XHESXT5XD
442XHESXV5XD
442XLESXP5XD
442XLESXS5XD
442XLESXT5XD
442XLESXV5XD

Muncie Cross Reference

MUNCIE P/N	NOTES
TG6BF6307P3BX	Order with M1 Stud Kit (This Transmission requires a Metric Stud Kit)
TG6SF6307P3BX

Bezares USA 1000 Series PTO

Made compatible with most common transmissions in the market, the Bezares USA 1000 Series PTO is an SAE six-hole, two gear-single speed, and standard mounting PTO. It is offered in different input gears, speed ratios, output shafts, and shifters. Also available in deep mount 1010 and 2010 series, all Bezares PTOs include large 12mm flange bolts so they can support larger pumps in the market.

Features & Benefits

Designed with industry-exclusive idler shaft with locking nut and snap ring
Gears go through deep gear tooth carburization for longer gear life
With larger flange mounting hardware for additional support and failure reduction
Product uses industry-leading Garlock gasket material, Viton o-ring material, and shaft seals for better tear resistance and leak prevention
With a symmetrical design that allows for trouble-free installation and multiple configuration options
Provides simple and robust mechanical air shift operation
Offers improved operator experience with its quiet operational noise levels
Designed for use on dump trucks and trailers, low boy, vacuum pumps, walking floor, and more

Type	Standard 6/8 Bolts
Make	Aisin, Allison, Chevrolet, Eaton, Fuller, Mack, Warner

BEZARES USA 1000XCN173SE Cross Reference

We have 19 alternatives for the 1000XCN173SE by BEZARES USA:

Based in Toledo, Spain, Bezares USA® is one of the world's biggest suppliers of power takeoffs (PTOs) and hydraulic pumps and accessories. It maintains a dominant market share in Spain, the U.K., and Sweden and caters to customers in more than 80 countries. With decades of experience in the European market, Bezares offers a wide range of PTO units and components for Isuzu, Mercedes, Mitsubishi, and Volvo transmissions, hydraulic pumps, dump pumps, birotational gear pumps, piston pumps, motors, and a range of auxiliary hydraulic components for trucks and industrial vehicles. All Bezares USA components draw from more than 90 years of experience and leadership in the industry.
