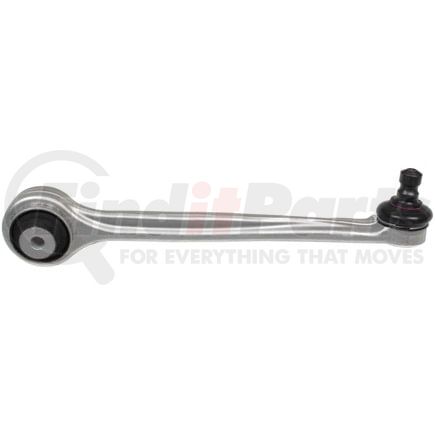

Delphi TC3797 - Control Arm and Ball Joint Assembly
$9399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper Forward |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Mounting Hole Quantity | 1 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 50.00 MM |
| Control Arm Color | Gray |
| Control Arm Maximum Length | 316.75 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 10.20 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Bushing Inside Diameter | 10.20 MM |
| Bushing Length | 50.00 MM |
| Control Arm Maximum Width | 1.969 IN |
| Control Arm Maximum Length | 12.470 IN |
| Mounting Hole Diameter | 0.402 IN |
| Bushing Inside Diameter | 0.402 IN |
| Bushing Length | 1.969 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | IT |
| UPC | 00689604357613 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Audi RS5 Sportback (2019, 2021-2022)
- Audi S5 Sportback (2018)
- Audi A5 Sportback (2018)
- Audi RS5 (2018-2019, 2021-2022)
- Audi S5 (2018-2022)
- Audi A5 Quattro (2018-2022)
- Audi A4 allroad (2017-2022)
- Audi S4 (2016-2022)
- Audi A4 Quattro (2016-2022)
- Audi A4 (2016-2019)
