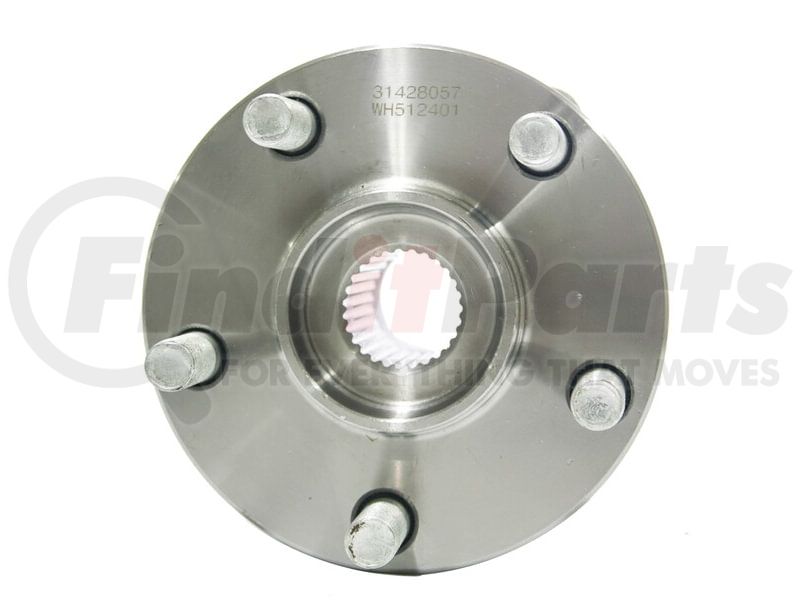

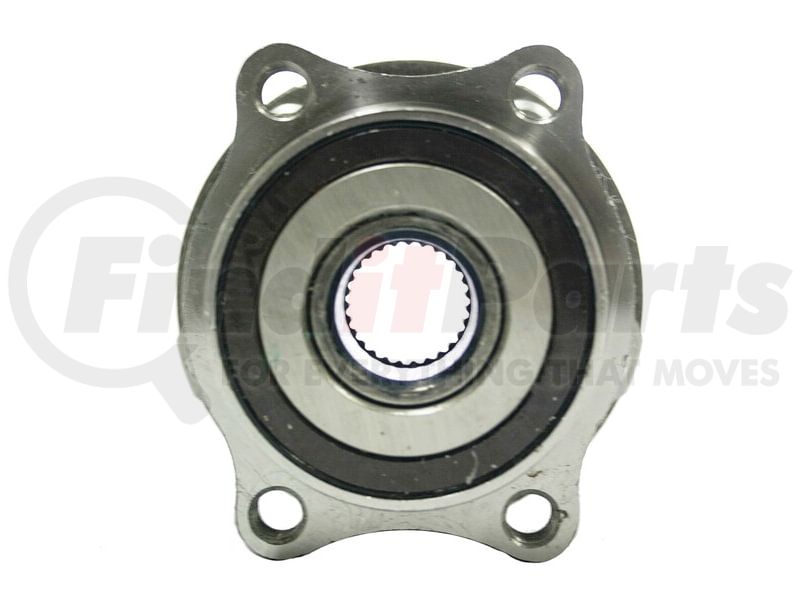

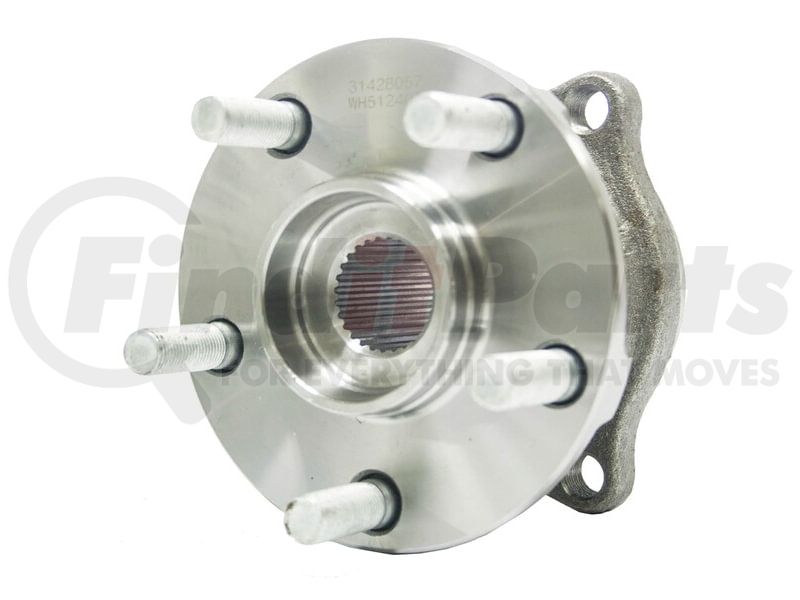

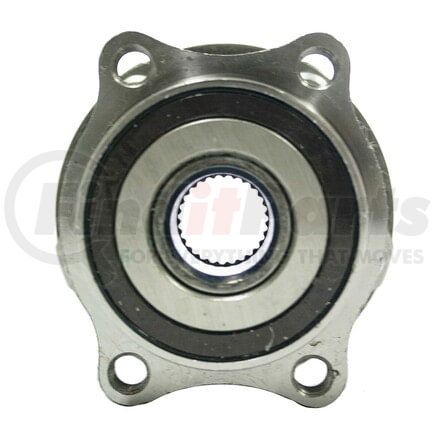

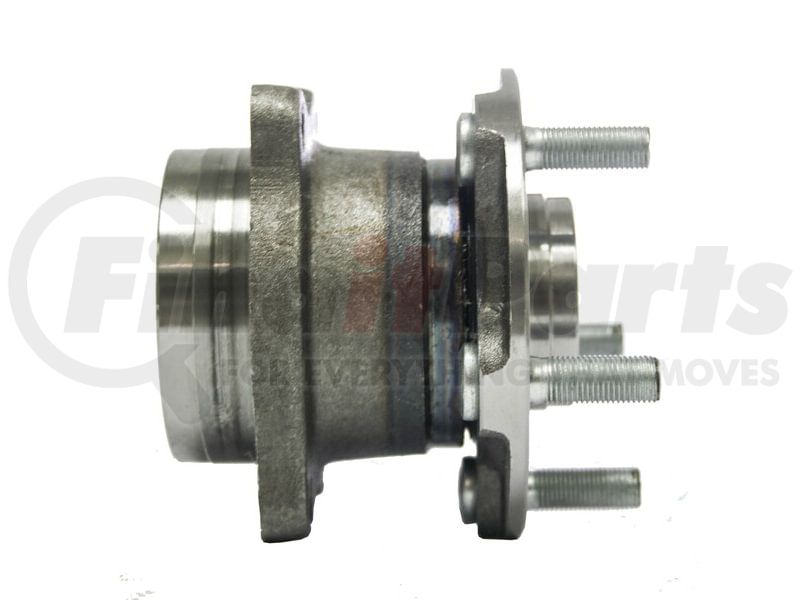

MPA Electrical WH512401 - Wheel Bearing and Hub Assembly
- Part Number
- WH512401
- Manufacturer
- MPA ELECTRICAL
- Description
-
Wheel Bearing and Hub Assembly
details
$11449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MPA ELECTRICAL part description
Wheel Bearing and Hub Assembly
Product Description
Wheel Bearing and Hub Assembly
Application Summary
Scion FR-S 2016-2013, Subaru BRZ 2020-2013, Crosstrek 2020-2019, Forester 2013-2009, Impreza 2014-2008, Legacy 2014-2010, Outback 2014-2010, WRX 2014-2012, WRX STI 2014-2013, Toyota 86 2020-2017
Features & Benefits
- Premium, high-carbon steel alloys improve load bearing capabilities and strength.
- Induction hardened, micro-finished races improve bearing durability and load capacity.
- Application-specific ABS sensors included for perfect vehicle control system signaling.
Product Attributes
| Greaseable | No |
| Hub Pilot Diameter Inch | 3.306 |
| Flange Diameter Inch | 4.882 |
| Product Condition | New |
| Spline Quantity | 27 |
| Wheel Stud Size MM | M12 x 1.25 |
| Gasket or Seal Included | Yes |
| Material | Steel |
| Wiring Harness Included | No |
| Stud Quantity | 5 |
| Spline Quantity | 27 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Studs Included | Yes |
| Flange Shape | Rectangle |
| Anti Lock Braking System Type | Encoder |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 2.62 IN |
| Flange Diameter | 4.882 IN |
| 9555 | 3.930 IN |
| 9555 | 99.822 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708995800 |
| UPC | 00029175925956 |
Part Interchanges
Fits Vehicles
- Subaru Crosstrek (2019-2020)
- Toyota 86 (2017-2020)
- Subaru WRX STI (2013-2014)
- Subaru WRX (2012-2014)
- Scion FR-S (2013-2016)
- Subaru BRZ (2013-2020)
- Subaru Outback (2010-2014)
- Subaru Legacy (2010-2014)
- Subaru Forester (2009-2013)
- Subaru Impreza (2008-2014)
