RAYBESTOS 982611 Part Description
Manufacturer
Product Description

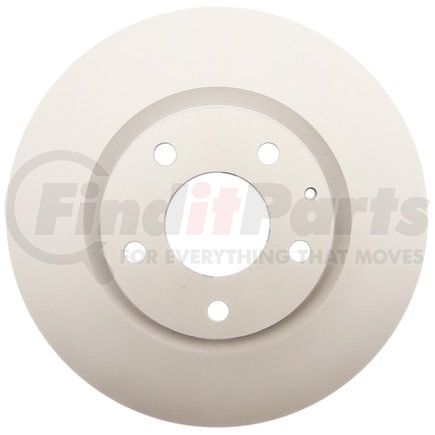

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2023-2019 Mazda 3 Front, 2023-2020 Mazda CX-30 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 982611 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.287 IN |
| Inside Diameter | 185.1 MM |
| Material | Cast Iron |
| Misc. Holes | 1 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.528 IN |
| Mounting Bolt Hole Diameter | 13.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.602 IN |
| Outside Diameter | 294.7 MM |
| Overall Height | 1.831 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213330960 |
RAYBESTOS 982611 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH690453P |
| AutoZone | 77122DG, 77122DL |
| BrakeBest | 982611RGS |
| Centric Parts | 120.45099, 121.45099 |
| Dura Corp | BR901810, BR901810-01 |
| DuraGo | BR901810, BR901810-01 |
| MAGMA PRODUCTS | PSR363079 |
| MAZDA | BEET33251 |
| Mazda | BDWK33251 |
| Qualis | 44945 |
| TopNotch | TN982611GEO |
| WORLDPAC | 1407-690453, 1427-732802 |
| Winhere | 6622441 |
RAYBESTOS 982611 Fits Vehicles
- Mazda CX-30 (2020-2025)
- Mazda 3 (2019-2025)
