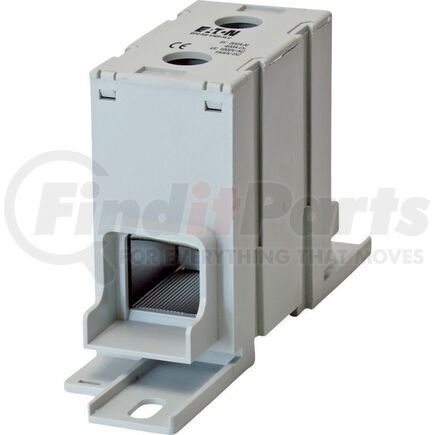

EATON part description
Product Attributes
| Material | Aluminum |
| Number of clamping units per pole | 2 |
| Heat deflection temperature | 100 ˚C |
| Terminal capacity (single/multi-wire) | 35 mm² - 240 mm² (outgoing); 2 - 500 MCM AWG (incoming); 35 mm² - 240 mm² (incoming); 6 - 400 MCM AWG (incoming, fine wire (with sleeve)); 16 mm² - 185 mm² (incoming, fine wire (with sleeve)); 16 mm² - 185 mm² (outgoing, fine wire (with sleeve)) |
| Terminal capacity (copper bar) | 9 mm x 4 mm - 20 mm x 10 mm (incomer); 9 mm x 4 mm - 20 mm x 10 mm (outgoing) |
| Voltage rating at AC Cu (IEC) - max | 1000 VAC |
| Mounting Method | Floor standing distribution board; Surface mounting; Flush mounting |
| Rated operation current (Ie) Cu (IEC) | 400 A |
| Amperage Rating | 400 A |
| Voltage rating at DC Cu (IEC) - max | 1500 VDC |
| Voltage rating at DC Al (IEC) - max | 1500 VDC |
| Voltage rating at AC Al (IEC) - max | 1000 VAC |
| Housing Color | Light gray (RAL 7035) |
| Rated operation current (Ie) Al (IEC) | 300 A |
| Clamp Material | Plated; Aluminum |
| DEGREE OF PROTECTION | IP10 |
| Conductor cross section (flexible, fine-strand) with cable end sleeve - min | 35 mm² |
| Conductor cross section (solid, solid-strand) - min | 35 mm² |
| SPECIAL FEATURES | Al-sector conductors tested up to 70mm²<br>Sector shaped Al-conductors 95mm²-240mm² have to be pre-rounded with a crimping-tool.<br>Clicks on DIN-rail or on base plate.<br>Save time on wiring.<br>Save 80% on space used.<br>Modular construction,1-4 pole Systems can be built with several blocks.<br>Material, hexagon socket set screw:Steel<br>This power distribution block is suitable for ALU and CU conductors.<br>Please pay attention to the common handling guidelines when connecting the aluminium conductors.<br>Clean and brush the contact surfaces and lubricate them with an appropriate grease.<br>As precaution the connections should get retightened regularly. |
| Functions | Additional equipment |
| Housing Material | PA66 |
| Number of Poles | Single-pole |
| Flame classification (UL 94) | V-0 |
| Conductor cross section (solid, solid-strand) - max | 240 mm² |
| Mounting Position | Universal |
| Comparative tracking index (CTI) | 600 V |
| Conductor cross section (flexible, fine-strand) with cable end sleeve - max | 240 mm² |
| Number of clamp positions per pole | 2 |
| Torque Rating | 20 Nm / 177 lbf (incoming). 20 Nm / 177 lbf (outgoing) |
