MAVAL 9393M Part Description
Manufacturer
Product Description

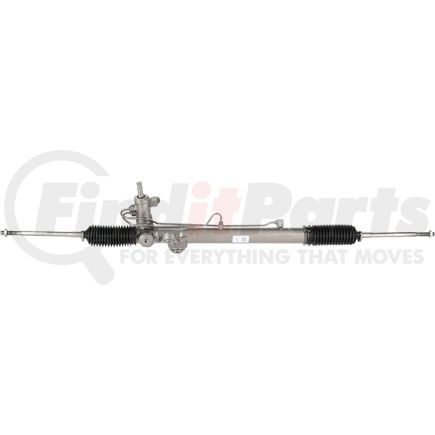

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9393M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
- To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance.
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9393M
MAVAL 9393M Specifications
Product Attributes
| Casting Material | Steel; Aluminum |
| Distance Between Mounting Holes | 4.06 IN |
| Distance Between Mounting Holes | 103.2 MM |
| Hose Port Type | Seat |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter | 18.92 MM |
| Input Shaft Diameter | 0.75 IN |
| Input Shaft Length | 1.81 IN |
| Input Shaft Length | 46.05 MM |
| Mounting Hole Quantity | 2 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1347.8 MM |
| Rack Length | 53.06 IN |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 46.74 MM |
| Thread Length | 1.84 IN |
| Total Turns Lock To Lock | 3.44 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613103245 |
MAVAL 9393M Fits Vehicles
- Honda Odyssey (2003-2004)
