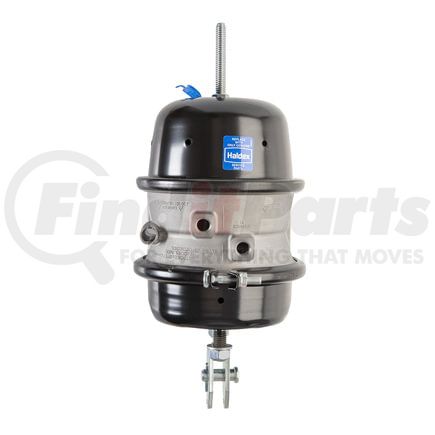

Name: Haldex GCS3030LS6CW Air Brake Chamber - Double Diaphragm, T30, 3 in. Stroke Length, Long Stroke
SKU: gcs3030ls6cw
Price: 114.99 USD
Availability: InStock

HALDEX part description

Product Description

Type 3030, GoldSeal, Welded Clevis, 3.0" Stroke, Heavy Duty Housing

Features & Benefits

Best-in-class powder coating ensures long-lasting corrosion resistance
Fitted with double O-ring center seal and exclusive wear rings for efficient sealing
Makes use of world-class power spring technology for superior performance
With self-piloting dust shield, durable plastic bearings, and top-quality diaphragm
High-grade, temperature-resistant rubber compound delivers flexibility even at -40°F
Patented Orange Alert® stroke indicator appears when brakes are out of adjustment
Designed to fit all drum brake applications
Comes in a variety of sizes to fit all drum brake applications

Haldex Gold Seal Spring Brake

Manufactured in ISO- and QS-certified facilities and using high-quality materials and advanced production processes, the Haldex Gold Seal spring brake ensures long-term durability and reliable performance. This component meets the industry's strict quality standards and delivers outstanding value mile after mile.

Product Attributes

Diaphragm Type	Double
Ram Stroke	3 in.
Bracket to End of Spring Housing Length	9.9 in.
Clevis Pin Length	2.87 in.
Freight Class	70
Piggyback Length	7.4 in.
Service Chamber Size	30
Service Clampband Size	10.2 in.
Spring Housing Flange Size	8.3 in.
Stroke Type	Long

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708936000
Harmonized Tariff Code (HTS)	8708936000
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	12 MO, 100,000 MI, 3600 Hours See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653397665
VMRS Code	013004027

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
