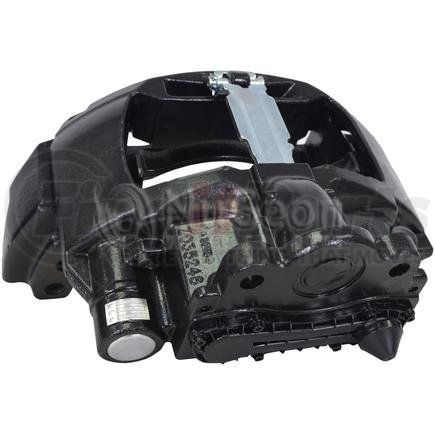

Name: NuGeon 99B90039-1 Air Brake Disc Brake Caliper - Black, Powder Coat, ADB22X Caliper Model
SKU: 99b900391
Price: 730.99 USD
Availability: InStock

NUGEON part description

Technical Specification:

Brake Chamber Mount Type	Axial
Brake Chamber Mounting Angle	0 Degrees
Brake Pad FMSI Number	D1369
Brake Pads Included	No
Caliper Actuation Type	Internal
Caliper Color	Black
Caliper Finish	Powder Coat
Caliper Manufacturer	Bendix
Caliper Model	ADB22X
Caliper Pad Wear Sensor	No
Caliper Piston Quantity	2
Carrier Color	Black
Carrier Finish	Powder Coat
Carrier Included	Yes
Carrier To Anchor Plate Mount Type	Axial
Carrier To Anchor Plate Mounting Bolt Hole Count	6
Carrier To Anchor Plate Mounting Bolt Thread (mm)	M20-2.5
Carrier to Anchor Plate Mounting Bolts Included	No
Hardware Included	Yes
Package Contents	Pad Installation Kit
Truck Wheel Size (in)	22.5
Use For Upgrade	99B90063-1
UPC	736749577243
Harmonized Tariff Code	8708305090

NuGeon Air Brake Disc Brake Caliper

The NuGeon air disc brake caliper delivers exceptional stopping power to match the demands of heavy duty vehicles. Each semi-loaded caliper uses OE castings and brand new components to ensure it matches the same fit and function as its stock counterpart.

Features & Benefits

Direct replacement to Bendix ADB22X for SAF Holland trailers
All bushings, sleeves, and other wearable components are 100% new
100% SAE-compliant rubber seals for a leak-free and like-new performance
End-of-line pressure-testing using OE equipment to ensure stability and optimal function
All components are remanufactured and assembled in the USA

Product Description

Remanufactured Air Disc Brake Caliper

Air Disc Brakes, Air Disk Brake, Air Disc Carrier, ADB, ADB22X, Air Brakes

Product Attributes

Package Contents	Pad Installation Kit
Brake Chamber Mount Type	Axial
Brake Chamber Mounting Angle	0 Degrees
Brake Pad FMSI Number	D1369
Pads Included	No
Caliper Actuation Type	Internal
Caliper Manufacturer	Bendix
Caliper model	ADB22X
Pad Wear Sensor Included	No
Piston Quantity	2
Mounting Bracket Included	Yes
Carrier To Anchor Plate Mount Type	Axial
Carrier To Anchor Plate Mounting Bolt Hole Count	6
Carrier To Anchor Plate Mounting Bolt Thread (mm)	M20-2.5
Carrier to Anchor Plate Mounting Bolts Included	No
Hardware Included	Yes
New Or Remanufactured	Remanufactured
Prop 65 Warning	WARNING: Cancer and Reproductive Harm
Truck Wheel Size (in)	22.5
Use For Upgrade	99B90063-1
Caliper Color	Black
Caliper Finish	Powder Coat
Carrier Color	Black
Carrier Finish	Powder Coat
Caliper Casting Material	Cast Iron
Caliper Slides Included	Yes

Additional Information

Warranty Time	36
Warranty Time UOM	MO
Country of Origin 2	CN
Refurbished Part	N
Stock Status	S
Country of Origin (Primary)	US
Remanufactured Part	Y
Harmonized Tariff Code (Schedule B)	8708305090
UPC	00661432313405

Part Interchanges

NUGEON 99B90039-1 Cross Reference

We have 28 alternatives for the 99B90039-1 by NUGEON:

Based in Daphne, AL, Nugeon® is the brake caliper division of US aftermarket supplier BBB Industries. It offers high-quality remanufactured hydraulic and air disc brake calipers for various industries, including automotive, agriculture, linehaul, marine, forestry, and forklift vehicles. All calipers have their wearable components replaced regardless of their condition with 100% brand new ones. They also undergo thorough inspection and testing to check for leaks, free-moving pistons, smooth bracket sliding, and other potential problem areas before leaving the assembly line. These steps ensure that Nugeon brake calipers not only look but also perform like a new OE caliper but at a more accessible price point.
