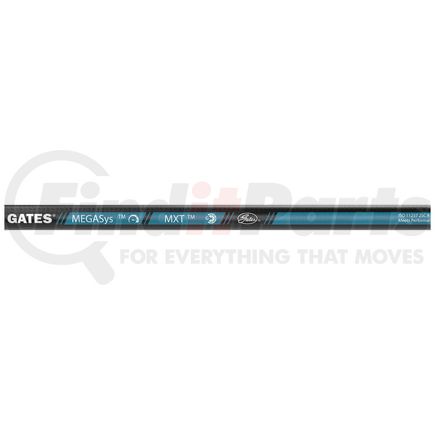

Gates 85053 - MXT MegaSys Wire Braid Hose - SAE 100R16
$87949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
MXT MegaSys Wire Braid Hose - SAE 100R16
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Tested to industry-leading 600,000 impulse cycles
- More flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | MXT MegaSys Wire Braid Hose - SAE 100R16 |
| Industrial Description | 16MXTX50FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 2400 PS |
| Burst Pressure | 9600 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 50 FT |
| 9941 | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.38 IN |
| 9879 | 6 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Polychloroprene |
| Cover Type | Flame, Oil & Weather Resistant |
| Cover Color | Black |
| 9856 | MegaCrimp |
| 9453 | 100R16 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00770075773917 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
