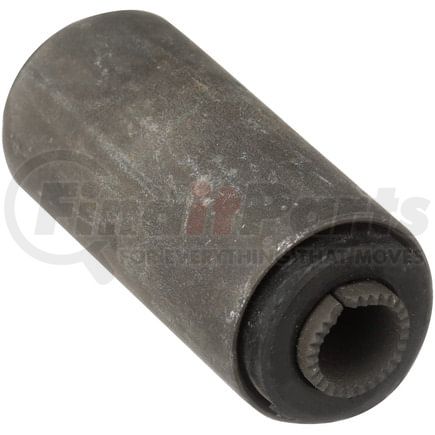

Delphi TD5010W - Suspension Leaf Spring Shackle Bushing
$1799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Suspension Leaf Spring Shackle Bushing
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Forward, Front Lower, Front Rearward. For the position specific to your vehicle, refer to the Applications. |
| Material | Rubber and Steel |
| Length | 3.660 IN |
| Color | Black |
| Inside Diameter | 0.568 IN |
| Thickness | 0.470 IN |
| Width | 1.508 IN |
| Outside Diameter | 1.508 IN |
| Height | 1.508 IN |
| Grade Type | Regular |
| Bolts Included | No |
| Length | 93.0 MM |
| Inside Diameter | 14.4 MM |
| Thickness | 11.9 MM |
| Width | 38.3 MM |
| Outside Diameter | 38.3 MM |
| Height | 38.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4016993000 |
| Harmonized Tariff Code (HTS) | 4016996000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| UPC | 00689604349939 |
| VMRS Code | 016002096 |
| UNSPSC | 25172009 |
Part Interchanges
Fits Vehicles
- Chevrolet K20 Panel (1967)
- GMC K25/K2500 Suburban (1973-1974)
- GMC K25/K2500 Pickup (1967-1970, 1973-1974)
- GMC K15/K1500 Suburban (1973-1974)
- GMC K15/K1500 Pickup (1967-1970, 1973-1974)
- Chevrolet K20 Pickup (1967-1970, 1973-1974)
- Chevrolet K10 Pickup (1967-1970, 1973-1974)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC K3500 (1979-1986)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1986)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1986)
- GMC K15 (1975-1978)
- GMC Jimmy (1973-1991)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 (1987)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet K30 (1977-1986)
- Chevrolet K20 Suburban (1973-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K10 Suburban (1973-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1973-1974, 1987-1991)
