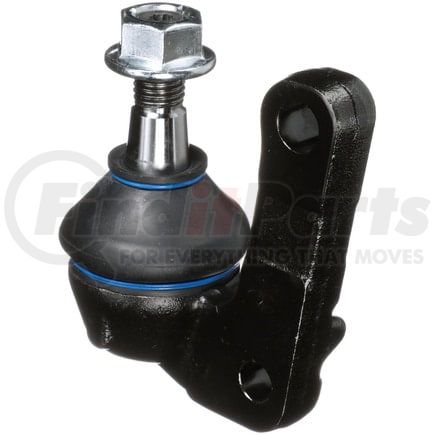

Delphi TC3817 - Ball Joint
$3549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 81.7 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.488 IN |
| Height | 63.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 1.106 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 84.20 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.665 IN |
| Stud Tapered End 2 Diameter | 16.9 MM |
| 9213 | 0.846 IN |
| Stud Tapered End 1 Diameter | 21.5 MM |
| Stud Thread Pitch | 2 MM |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Length | 28.09 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604327920 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Buick Envision (2016-2020)
- Buick Cascada (2016-2019)
- Cadillac ELR (2014-2016)
- Cadillac XTS (2013-2019)
- Buick Regal (2012-2017)
- Buick Allure (2010)
- Saab 9-5 (2010-2011)
- Buick LaCrosse (2010-2019)
