Delphi TC6162 - Ball Joint
$3999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description

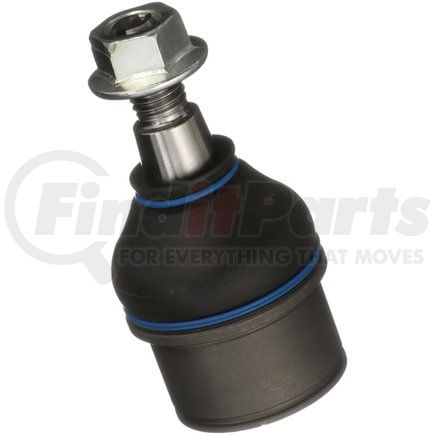

Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.047 IN |
| Maximum Outside Diameter | 52.00 MM |
| Color | Gray |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 52 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.760 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.965 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.669 IN |
| Stud Tapered End 2 Diameter | 17 MM |
| 9213 | 0.854 IN |
| Stud Tapered End 1 Diameter | 21.7 MM |
| Stud Thread Pitch | 2 MM |
| Stud Thread Diameter | 0.55 IN |
| Height | 95.50 MM |
| Stud Thread Length | 24.51 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604335161 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Cadillac CTS (2008-2014)
- Cadillac STS (2005-2011)
- Cadillac SRX (2004-2009)
