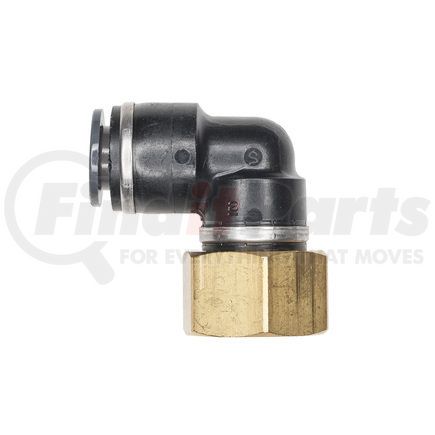

Name: Haldex APC70S6X2 Air Brake Air Line Connector Fitting - Female 90° Elbow, Swivel, 3/8 Tube Size
SKU: apc70s6x2
Price: 10.49 USD
Availability: InStock

HALDEX part description

Product Description

Composite Female 90° Elbow Swivel 3/8T 1/8P Sold in quantities of 5

Features & Benefits

With a typical temperature range from -40° to 200°F
Made compatible with J844 and 49 CFR 571.106 air brake tubing
With polybutylene terephthalate and brass construction for superior durability
Built to offer years of reliable use

Haldex Midland Composite Female 90° Elbow Swl

The Haldex Midland composite female 90° elbow swl is a crucial air brake system component specifically designed to change the angle or direction of the air lines. A part of Haldex’s comprehensive range of air brake air line connector fittings, this air-push connect fitting with swivel feature is made to conform and meet FMVSS 571.10, SAE J1131, J2494 1, and J2494 3 air brake performance requirements.

Product Attributes

Axis 1 Length	1.03 in.
Axis 2 Length	0.74 in.
Connector Gender	Female
Fitting Inlet Angle	90 Degree
Freight Class	70
Material	Composite
Pipe Diameter	1/8-27 in. NPT
Tubing Inside Diameter	3/8 in.
Type	Swivel Elbow

Additional Information

Country of Origin (Primary)	SG
Harmonized Tariff Code (Schedule B)	7412200035
Harmonized Tariff Code (HTS)	7412200035
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653391946
VMRS Code	013010002

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
