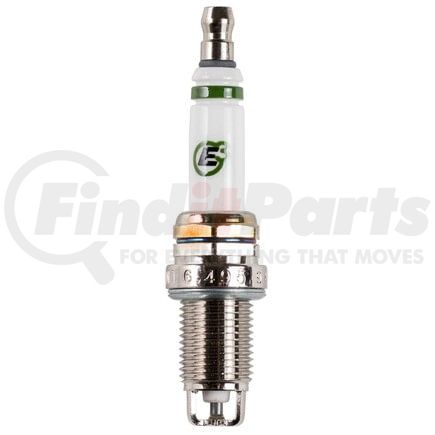

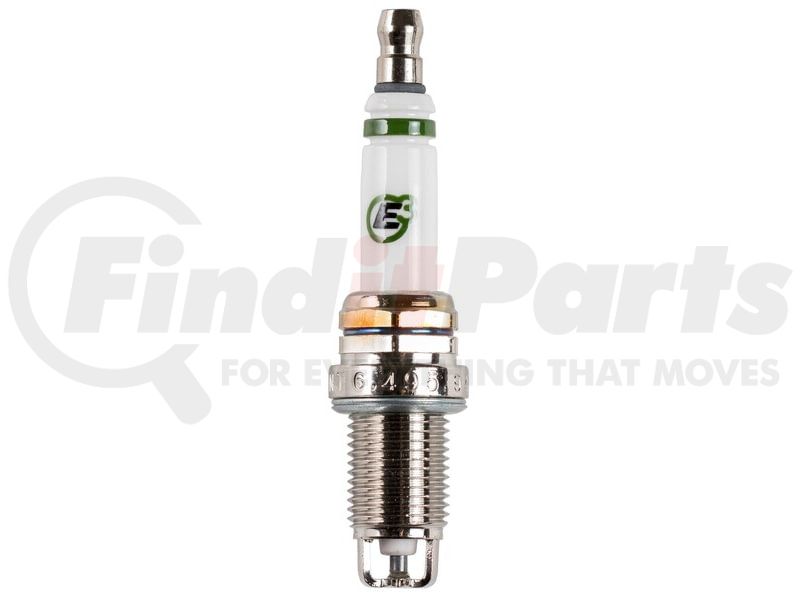

E3 SPARK PLUGS part description

Premium Automotive Spark Plug; Resistor; 5/8 in. Hex Size; 0.750 in. Thread Reach; 14mm Thread Diameter; Gasket Seat; DiamondFIRE Tip w/Fixed Gap;

Product Description

Premium Automotive Spark Plug

Features & Benefits

  • Patented DiamondFIRE Ground Electrode
  • Edge-To-Edge Ground Electrode Out Performs Other Plug Designs
  • E3 Equipped Engines Can Minimize Venting Of Unburned Fuel
  • Burn Fuel More Efficiently By Burning Fuel More Completely
  • Provide A Like-New Performance For The Life Of The Plug
  • The Most Environmentally-Friendly Plug Available

Product Attributes

WARNING CA Proposition 65 Yes
Application Specific or Non-Application Application Specific
Brand Name E3 Spark Plugs
Bullet Efficiency - E3 "diamond shaped" side wire electrode projects the combustion spark in a way that more quickly ignites the air/fuel mixture, thereby creating a significantly faster and longer flame kernel, more fuel is put to work with less waste; creating improved fuel economy-results will vary
Center Electrode Core Material Copper
Center Electrode Tip Material Nickel
Electrode Core Copper
Electrode Tip Nickel
Features & Benefits E3 Spark Plugs are the product of years of fundamental research in the combustion field. The unique patented ground electrode configuration increases the amount of combustion pressure created during each power stroke of the engine, which results in a marked increase in power output, fuel economy, and reduced emissions in all gasoline engines. E3's DiamondFire edge to edge ground electrode provides maximum performance with increased efficiency and a faster more complete burn.
Gap Pre-gapped at the factory to meet O.E. requirements; Gap cannot be adjusted
Ground Electrode Tip Material Nickel
Hex Size 5/8 IN
Insulator Height 2.059 IN
Part Type Name Automotive Spark Plug
Pre-Gap Size .040 IN
Reach 3/4 IN
Resistor Resistor
Seat Style Gasket
Spark Plug Approximate Resistor Value 3500-7000 82
Thread Size 14 MM
Insulator Height 52.29 MM
Pre-Gap Size 1.016 MM
Reach 3/4 IN
Reach 19.05 MM

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8511100000
Harmonized Tariff Code (HTS) 8511100000
NAFTA Preference Criterion Code B
Warranty Special E3 PowerSport spark plugs properly installed in non-commercial equipment; are wa
Warranty Special UOM TX
UPC 00894489000640

Part Interchanges

Fits Vehicles

  • Volvo V50 (2006-2007)
  • Volvo XC90 (2003-2006)
  • Volvo XC70 (2003-2008)
  • Volvo V90 (1997-1998)
  • Volvo V70 (1998-2007)
  • Volvo V40 (2000-2004)
  • Volvo S90 (1997-1998)
  • Volvo S80 (2000-2006)
  • Volvo S70 (1998-2000)
  • Volvo S60 (2001-2007)
  • Volvo S40 (2000-2004)
  • Volvo C70 (1998-2004)
  • Volvo 850 (1993-1997)
  • Mercedes-Benz Maybach S650 (2018-2020)
  • Mercedes-Benz G65 AMG (2016-2018)
  • Mercedes-Benz Maybach S600 (2016-2017)
  • Mitsubishi Outlander Sport (2011)
  • Mitsubishi Lancer (2011)
  • Honda CR-Z (2011-2016)
  • Chevrolet Aveo5 (2007-2008)
  • Saab 9-3 (2008-2009)
  • Audi S5 (2008-2012)
  • Audi R8 (2008-2012, 2014-2015, 2017)
  • BMW Alpina B7 (2007-2008)
  • Mini Cooper (2007)
  • Audi S6 (2007-2011)
  • Audi RS4 (2007-2008)
  • Audi Q7 (2007-2010)
  • Porsche Cayman (2006-2009)
  • BMW 650i (2006)
  • BMW 550i (2006-2007)
  • Mercedes-Benz SLK55 AMG (2006-2010)
  • Mercedes-Benz CLK55 AMG (2006)
  • Mercedes-Benz C55 AMG (2005-2006)
  • Mercedes-Benz S600 (2006-2013, 2015-2017)
  • Mercedes-Benz S65 AMG (2006-2013, 2015-2020)
  • BMW 750i (2006)
  • BMW 750Li (2006)
  • BMW 760i (2004-2006)
  • Mercedes-Benz SL65 AMG (2005-2009, 2011, 2013-2018)
  • Mercedes-Benz SL600 (2005-2009)
  • Mercedes-Benz CL65 AMG (2005-2006, 2008-2014)
  • Saab 9-2X (2005)
  • Chrysler Crossfire (2005-2006)
  • BMW X3 (2004-2006)
  • BMW 645Ci (2004-2005)
  • Volkswagen Touareg (2004-2009)
  • Volkswagen Phaeton (2004-2006)
  • Porsche Carrera GT (2004-2005)
  • Chevrolet Aveo (2004-2008)
  • BMW 545i (2004-2005)
  • Audi A8 Quattro (2004-2012)
  • Audi Allroad Quattro (2004-2005)
  • Toyota RAV4 (2000)
  • Toyota Solara (2001-2003)
  • Toyota Sienna (1998-2000)
  • Toyota MR2 (1991-1995)
  • Toyota Celica (1990-1993)
  • Toyota Camry (2001)
  • Lexus LS400 (1995-1996)
  • Audi RS6 (2003)
  • Audi S8 (2001-2002, 2007-2009)
  • Audi S4 (2000-2001, 2004-2009)
  • Audi A6 Quattro (1999-2001, 2005-2011)
  • Audi A6 (1998-2001, 2006-2008)
  • Audi A4 Quattro (1997-2001, 2005-2009)
  • Audi A4 (1997-2001, 2006-2008)
  • Volkswagen Jetta (1991)
  • Volkswagen Passat (1990-1993, 1998-2005)
  • Mitsubishi Galant (2001-2003)
  • Mitsubishi Eclipse (2001)
  • Mercedes-Benz SLK32 AMG (2002-2004)
  • Mercedes-Benz SLK230 (1998-2004)
  • Mercedes-Benz CL600 (2002, 2005-2014)
  • Mercedes-Benz C230 (2000, 2002)
  • Honda S2000 (2000-2009)
  • Honda Passport (1996)
  • Honda Civic (1998-2000, 2003-2004, 2006-2011)
  • Acura SLX (1998)
  • Acura RSX (2002-2006)
  • Pontiac Vibe (2003)
  • Pontiac Grand Am (1993)
  • Oldsmobile Achieva (1993)
  • Geo Storm (1991-1993)
  • Geo Prizm (1992-1997)
  • Chevrolet Metro (2000-2001)
  • Plymouth Neon (1995-1996)
  • Plymouth Colt (1994)
  • Eagle Talon (1995-1998)
  • Eagle Summit (1994-1996)
  • Dodge Stratus (1995-2005)
  • Dodge Ram 3500 (1994)
  • Dodge Ram 2500 (1994)
  • Dodge Neon (1995-1996)
  • Dodge Avenger (1995-1999)
  • Chrysler Sebring (1995-1999, 2001-2005)
  • Chrysler Cirrus (1995-1999)
  • Isuzu Rodeo Sport (2003)
  • Isuzu Rodeo (2003)
  • BMW Z8 (2000-2003)
  • BMW Z4 (2003-2005)
  • BMW Z3 (1998-2002)
  • BMW X5 (2000-2006)
  • BMW M5 (2000-2003)
  • BMW M3 (1996)
  • BMW 850Ci (1997)
  • BMW 760Li (2003-2008)
  • BMW 750iL (1999-2001)
  • BMW 745Li (2002-2005)
  • BMW 745i (2002-2005)
  • BMW 740iL (1999-2001)
  • BMW 740i (1999-2001)
  • BMW 540i (1999-2003)
  • BMW 530i (2001-2005)
  • BMW 528i (1999-2000)
  • BMW 525i (1991, 2001-2005)
  • BMW 330xi (2001-2005)
  • BMW 330i (2001-2005)
  • BMW 330Ci (2001-2006)
  • BMW 328is (1999)
  • BMW 328i (1999-2000)
  • BMW 328Ci (2000)
  • BMW 325xi (2001-2005)
  • BMW 325iX (1991)
  • BMW 325is (1991)
  • BMW 325i (1991, 2001-2005)
  • BMW 325Ci (2001-2006)
  • BMW 323is (1998-1999)
  • BMW 323i (1998-2000)
  • BMW 323Ci (2000)
  • BMW 318ti (1999)
  • BMW 318is (1991)
  • BMW 318i (1991)
  • Kia Sportage (1995-2000)
  • Kia Sephia (1995-1997)
  • Jaguar XKR (2000-2003)
  • Jaguar XJR (1995-2001)
  • Jaguar XJ6 (1995)
  • Jaguar Vanden Plas (2000-2001)
  • Daewoo Nubira (1999-2002)
  • Daewoo Lanos (1999-2002)
  • Subaru Impreza (1999)
  • Land Rover Freelander (2002-2005)
  • Porsche Cayenne (2003-2006, 2008-2009)
  • Porsche Boxster (1997-2009)
  • Porsche 968 (1994)
  • Porsche 928 (1985-1991, 1993-1995)
  • Porsche 911 (1991-2009, 2011)
